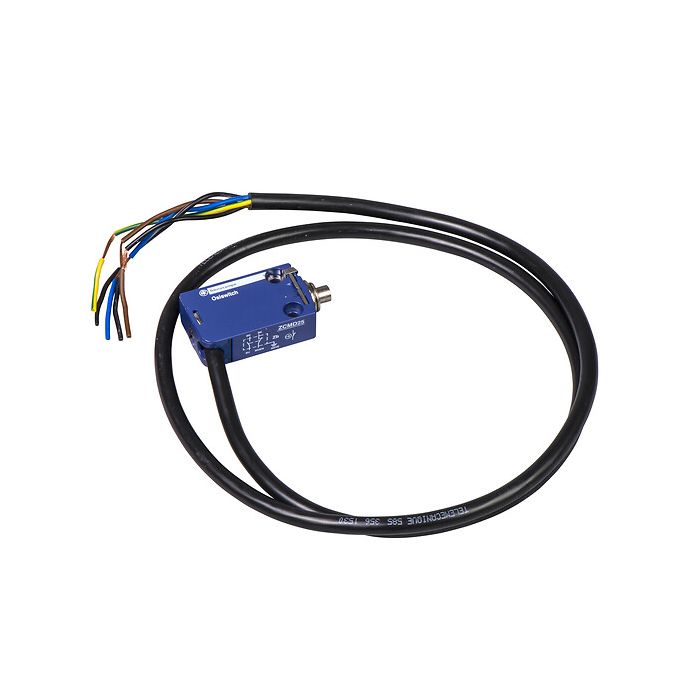

TELEMECANIQUE SENSORS - XCMD2110L3TQ - Limit switch, Limit switches XC Standard, XCMD, metal end plunger, 1NC+1 NO, snap, 3 m
Lei 331.00
Lei 273.55
In stock
SKU
XCMD2110L3TQ
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch, Limit switches XC Standard, XCMD, metal end plunger, 1NC+1 NO, snap, 3 m
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCMD |
| Sensor design | Miniature |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return plunger metal |
| Type of approach | Vertical approach, 1 direction |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
Complementary
| Switch actuation | On end |
|---|---|
| Electrical connection | Removable cable connector |
| Cable composition | 5 x 0.75 mm² |
| Wire insulation material | PvR |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
Environment
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 62262 |
| Overvoltage category | Class I |
| Product certifications | CSA UL |
| Standards | CSA C22.2 No 14 IEC 60947-5-1 UL 508 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3 CENTIMETER |
| Package 1 width | 16.5 CENTIMETER |
| Package 1 length | 18 CENTIMETER |
| Package 1 weight | 0.323 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 30 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 40 CENTIMETER |
| Package 2 length | 30 CENTIMETER |
| Package 2 weight | 10.403 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 240 |
| Package 3 height | 77 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 74 KILOGRAM |
| Indivisible sale quantity | 30 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XCMD2110L3TQ |
| Order Unit | Pce |
