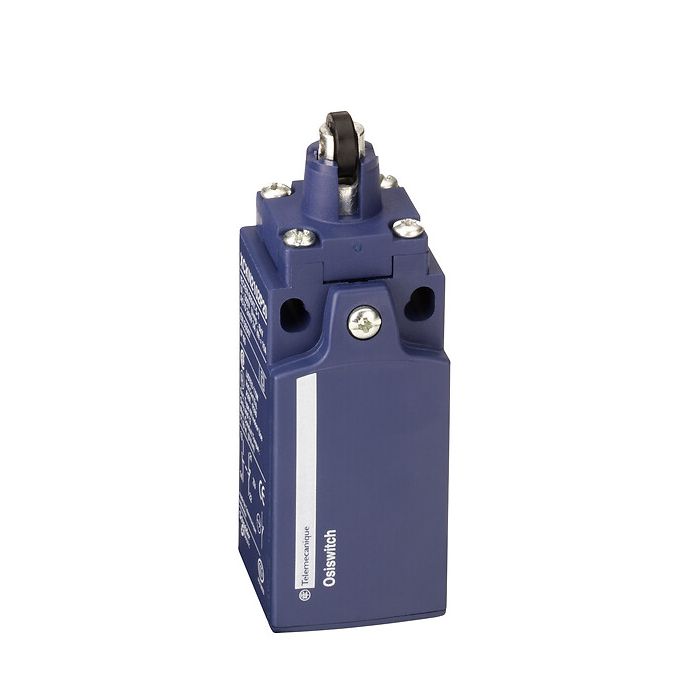

TELEMECANIQUE SENSORS - XCKN2903P20 - Limit switch, Limit switches XC Standard, XCKN, plastic roller plunger, 2NC, snap, M20
Lei 146.00
Lei 120.66
In stock
SKU
XCKN2903P20
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch, Limit switches XC Standard, XCKN, plastic roller plunger, 2NC, snap, M20
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKN |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger plastic at 90° |
| Type of approach | Traverse approach, 2 directions |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contacts type and composition | 2 NC |
| Contact operation | Snap action |
Complementary
| Switch actuation | By 30° cam |
|---|---|
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Terminals description ISO n°1 | (11-12)NC (21-22)NC |
Environment
| Shock resistance | 45 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Overvoltage category | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CCC CSA UL |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3 CENTIMETER |
| Package 1 width | 3 CENTIMETER |
| Package 1 length | 8.5 CENTIMETER |
| Package 1 weight | 0.061 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 80 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 4.88 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 20 |
| Package 3 height | 11.5 CENTIMETER |
| Package 3 width | 12.5 CENTIMETER |
| Package 3 length | 16.5 CENTIMETER |
| Package 3 weight | 2.022 KILOGRAM |
| Indivisible sale quantity | 20 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XCKN2903P20 |
| Order Unit | Pce |
