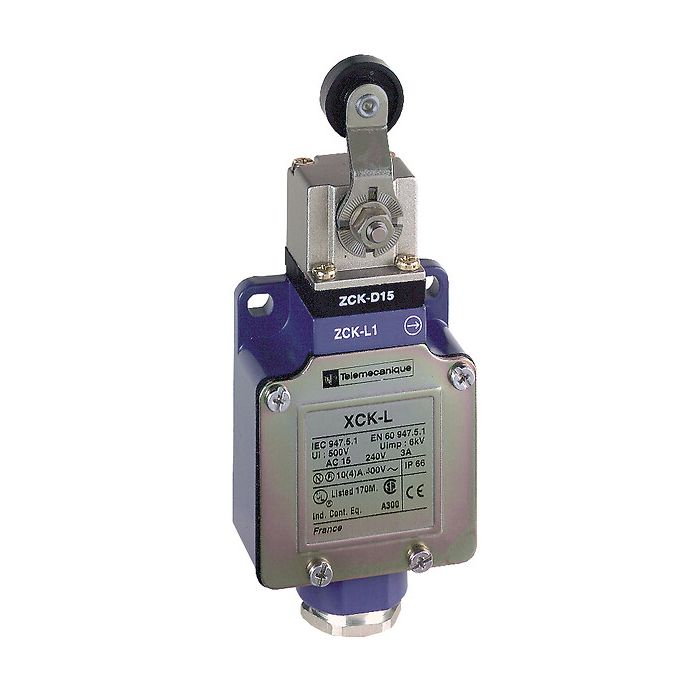

TELEMECANIQUE SENSORS - XCKL515 - Limit switch, Limit switches XC Standard, XCKL, thermoplastic roller lever, 1NC+1 NO, slow, Cable gland
Lei 432.00
Lei 357.02
In stock
SKU
XCKL515
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch, Limit switches XC Standard, XCKL, thermoplastic roller lever, 1NC+1 NO, slow, Cable gland
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKL |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic |
| Type of approach | Lateral approach, 2 directions |
| Cable entry | 1 metal cable gland entry, cable outer diameter: 6-13.5 mm |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break, break before make |
Complementary
| Switch actuation | By 30° cam |
|---|---|
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
Environment
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
| Product certifications | CSA UL |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.2 CENTIMETER |
| Package 1 width | 6.5 CENTIMETER |
| Package 1 length | 14.8 CENTIMETER |
| Package 1 weight | 0.313 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 32 |
| Package 2 height | 15 CENTIMETER |
| Unit type of package 3 | CAR |
| Package 2 width | 30 CENTIMETER |
| Number of units in package 3 | 1 |
| Package 2 length | 40 CENTIMETER |
| Package 3 height | 3.2 CENTIMETER |
| Package 2 weight | 10.471 KILOGRAM |
| Package 3 width | 14.8 CENTIMETER |
| Package 3 length | 6.5 CENTIMETER |
| Package 3 weight | 0.313 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XCKL515 |
| Order Unit | Pce |
