WIELAND - FEED-THROUGH TERMINAL RFK 1 / 185 FM S35/V0, Order Unit 10 pcs, Price/pcs
Lei 79.00
Lei 65.29
In stock
Only 2 left
SKU
5639810550
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

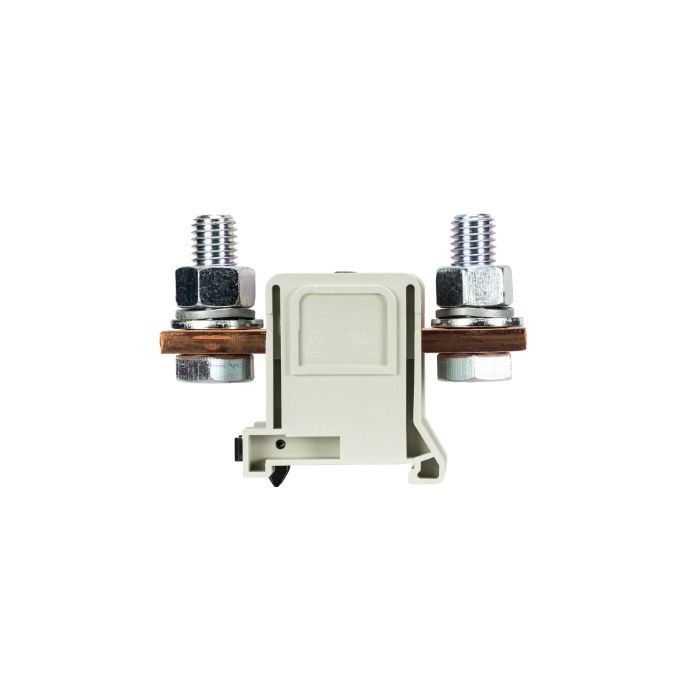

- Feed-through terminal with Screw connection for mounting on TS 35/7,5 mm, nominal cross section: 185 mm², width: 42 mm, color: grey
Write Your Own Review
| Manufacturer | WIELAND |
|---|---|
| Manufacturer code | 56.398.1055.0 |
| Order Unit | Pce |
| Length packed | 234 mm |
| Width packed | 190 mm |
| Height packed | 89 mm |
| Gross weight packed | 2805 g |
| Net weight single part | 268.57 g |
| Volume packed | 3957 ccm |
| Colour | Grey |
| Inflammability class of insulation material acc. with UL94 | V0 |
| Pollution degree | 3 |
| Connection type | screw connection |
| Rated impulse voltage | 8 kV |
| Nominal cross section | 185 mm² |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Width/grid dimension | 42 mm |
| Insulating housing | PA666 |
| Mounting Method | DIN rail (top hat rail) 35/7.5 mm |
| Rated current | 353 A |
| Rated Voltage (V) | 1000 V |
| Closing plate required | No |
| Type of insulation material | Thermoplastic |
| Length | 92 mm |
| Maximum cross section fine stranded | 185 mm² |
| Torque conductor mounting | 14 Nm |
| Cross section UL | 0 AWG-400 kcmil |
| Voltage UL | 600 V |
| Current factory wiring | 375 A |
| Current field wiring | 375 A |
| Cross section CSA | 0 AWG-400 kcmil |
| Voltage CSA | 600 V |
| Current CSA | 375 A |
| ROHS conformity status | Compliant |
| REACH-SVHC conformity status | Compliant |
| Country of origin | DE |
