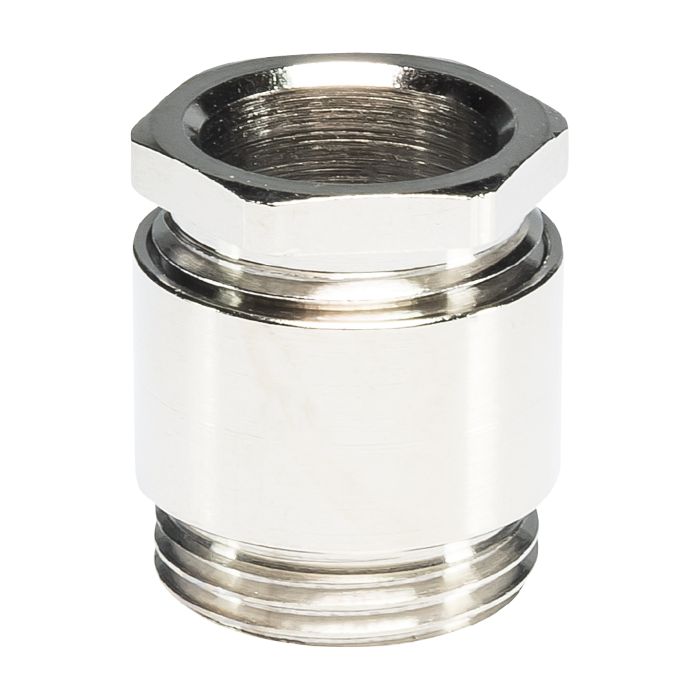

WIELAND - Z550723210 - CABLE SCREW GLAND M25X1,5
Lei 28.32
Lei 23.40
In stock
Only 5 left
SKU
Z550723210
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Cable gland, IP54, M25x1,5, metal
Technical data
| EAN | 4015573616561 |
|---|---|
| country of origin | DE |
| customs tariff number | 74198090 |
| net weight single part | 37.9 g |
| thread size M | 25 |
| thread length | 7 mm |
| min. cable diameter | 8.5 mm |
| max. cable diameter | 17.5 mm |
| degree of protection (IP) | IP54 |
| material | brass |
| surface | nickel-plated |
| color | other |
| wrench width | 25 mm |
| shock resistant | yes |
| bend radius protection/trumpet flare | no |
| cross bracket strain relief | no |
| type of sealing | cut-out ring |
| separable screw gland | no |
| multi seal area | no |
| thread type | metric |
| halogen free | yes |
| inflammability class of insulation material acc. with UL94 | other |
| ECLASS 8.1 | 27149109 |
| ETIM 9.0 | EC000441 |
| ETIM 8.0 | EC000441 |
| ETIM 7.0 | EC000441 |
| ETIM 6.0 | EC000441 |
| ETIM 5.0 | EC000441 |
| ETIM 4.0 | EC000441 |
| ETIM 3.0 | EC000441 |
| ROHS conformity status | compliant/exempted |
| ROHS exceptions | III-6(c) |
| REACH-SVHC conformity status | Duty-To-Declare |
| REACH-SVHC substances | Plumbum |
| REACH-SVHC CAS numbers | 7439-92-1 |
Documentation: 3D product image
Documentation: catalogue
Documentation: Declaración REACH SVHC
Documentation: RoHS certificate
Write Your Own Review
| Manufacturer | WIELAND |
|---|
