OKW - Two-piece case with high top and open side base
Lei 81.00
Lei 68.07
Out of stock
SKU
A9031065
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

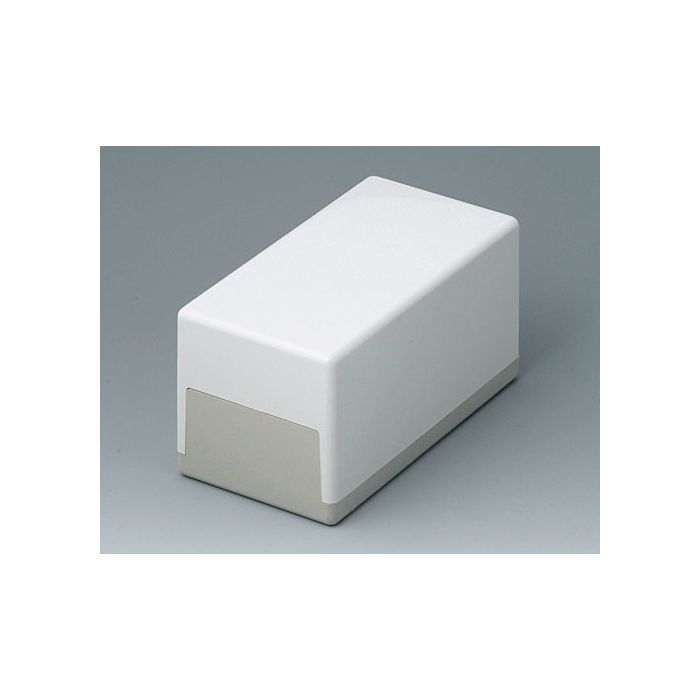

Two-piece case with high top and open side base
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting. Version without handle bar. Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9031065 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | Top part off-white RAL 9002, Bottom part pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 80 mm |
| Length | 150 mm |
| Height | 80 mm |
| Protection class | IP 40 |
| PCB Length, Base | 126 mm |
| PCB Width, Base | 73 mm |
| PCB Length, Top | 142 mm |
| PCB Width, Top | 72 mm |
