OKW - Two-piece case with front panel support and PCB mounting pillars [65 mm x 120 mm x 40 mm]
Lei 64.00
Lei 53.78
In stock
SKU
A9520165
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

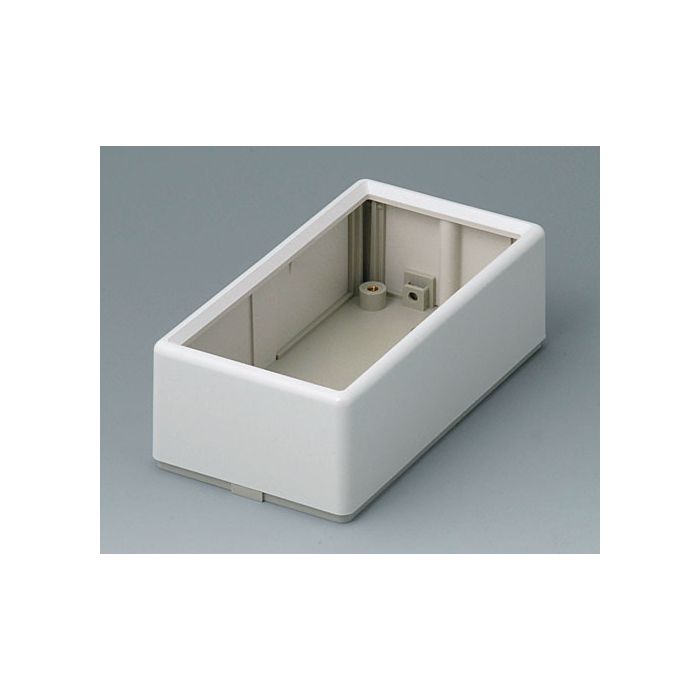

Two-piece case with front panel support and PCB mounting pillars
Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9520165 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | Top part off-white RAL 9002, Bottom part pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 65 mm |
| Length | 120 mm |
| Height | 40 mm |
| Protection class | IP 40 |
| PCB Length, Base | 106 mm |
| PCB Width, Base | 57 mm |
