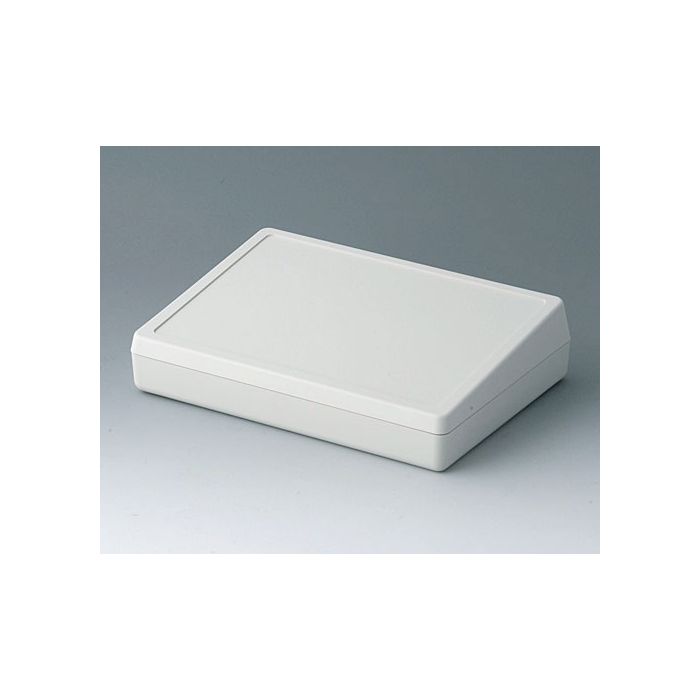

OKW - Two-part case with sloped operation area and closed top part [190 mm x 47 mm x 138 mm]
Lei 126.00
Lei 105.88
In stock
SKU
A0519007
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Two-part case with sloped operation area and closed top part
Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs. Version: With closed top part. Supply: 1 top and base part, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A0519007 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 190 mm |
| Height | 47 mm |
| Depth | 138 mm |
| PCB Length, Base | 118 mm |
| PCB Width, Base | 180 mm |
| PCB Length, Top | 127 mm |
| PCB Width, Top | 175 mm |
| Keypad Length | 116.1 mm |
| Keypad Width | 171.5 mm |
