OKW - Two-part high construction case for table and wall mounting
Lei 139.00
Lei 116.81
Out of stock
SKU
A0620107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

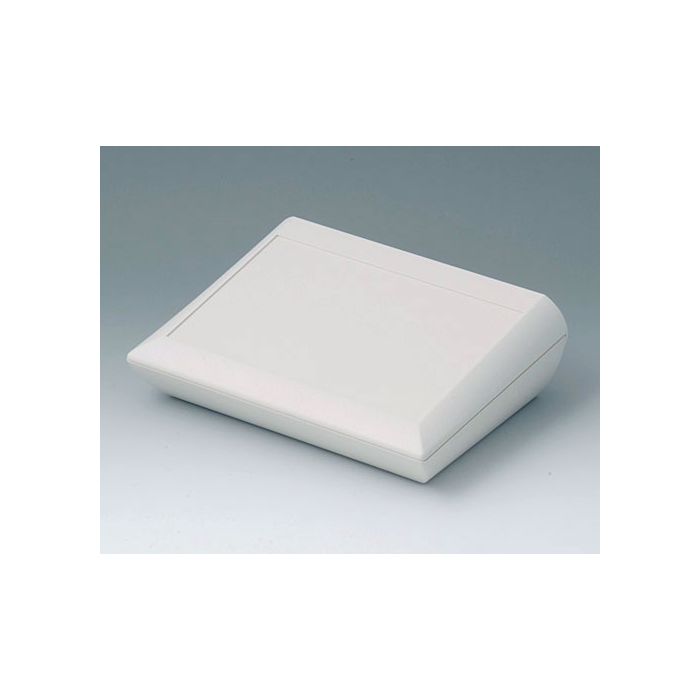

Two-part high construction case for table and wall mounting
Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear. Version Without battery compartment Supply 1 top and bottom part, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A0620107 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 200 mm |
| Height | 62.8 mm |
| Depth | 150 mm |
| Protection class | IP 40 |
| PCB Length, Base | 123 mm |
| PCB Width, Base | 174 mm |
| PCB Length, Top | 137 mm |
| PCB Width, Top | 185 mm |
| Keypad Length | 109.85 mm |
| Keypad Width | 167.75 mm |
