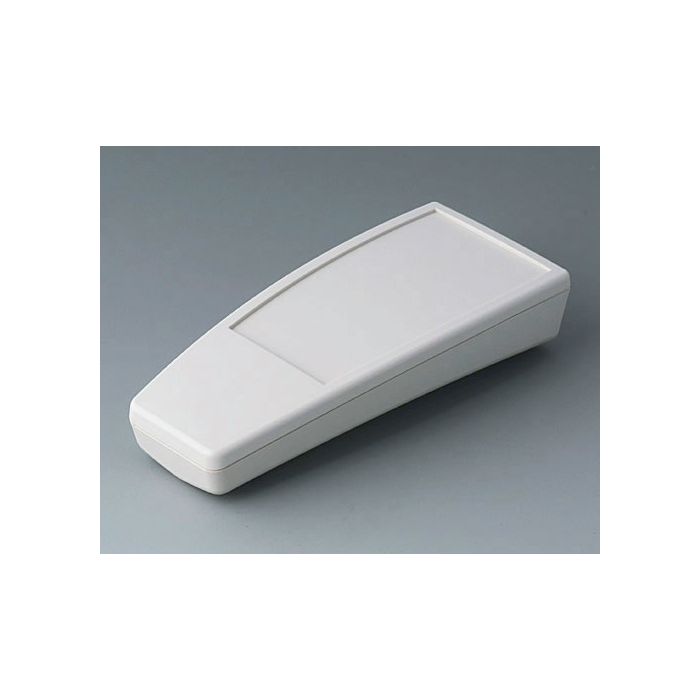

OKW - Handheld case, screw connection, membrane keyboard area [74.4 mm x 168 mm x 35.4 mm]
Lei 101.00
Lei 83.47
In stock
SKU
A9068117
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Handheld case, screw connection, membrane keyboard area
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9068117 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 74.4 mm |
| Length | 168 mm |
| Height | 35.4 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 127 mm |
| PCB Width, Base | 61 mm |
| PCB Length, Top | 132 mm |
| PCB Width, Top | 61 mm |
| Keypad Length | 110.5 mm |
| Keypad Width | 61.5 mm |
