OKW - Flat two-part case for table and wall-mount use, 10° sloped operating area, 1.2mm recess for keyboards [120 mm x 42.8 mm x 150 mm]
Lei 112.00
Lei 94.12
In stock
SKU
A0612007
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

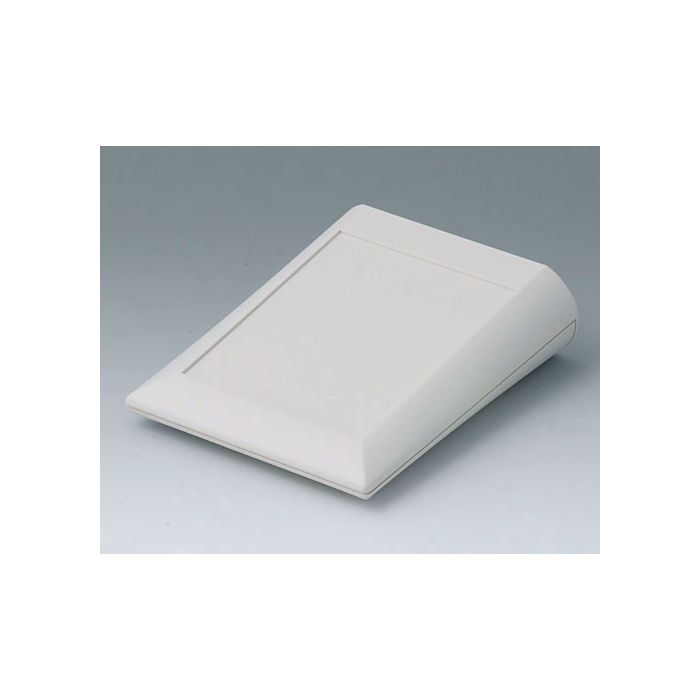

Flat two-part case for table and wall-mount use, 10° sloped operating area, 1.2mm recess for keyboards
Two-part case in flat construction for table top and wall-mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear. Version Without battery compartment Supply 1 top and bottom part, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A0612007 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 120 mm |
| Height | 42.8 mm |
| Depth | 150 mm |
| Protection class | IP 40 |
| PCB Length, Base | 128 mm |
| PCB Width, Base | 94 mm |
| PCB Length, Top | 137 mm |
| PCB Width, Top | 105 mm |
| Keypad Length | 109.85 mm |
| Keypad Width | 87.85 mm |
