OKW - Three-part high construction case, 10° sloped operating area, interfaces area, battery compartment option.
Lei 150.00
Lei 126.05
Out of stock
SKU
A0620119
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

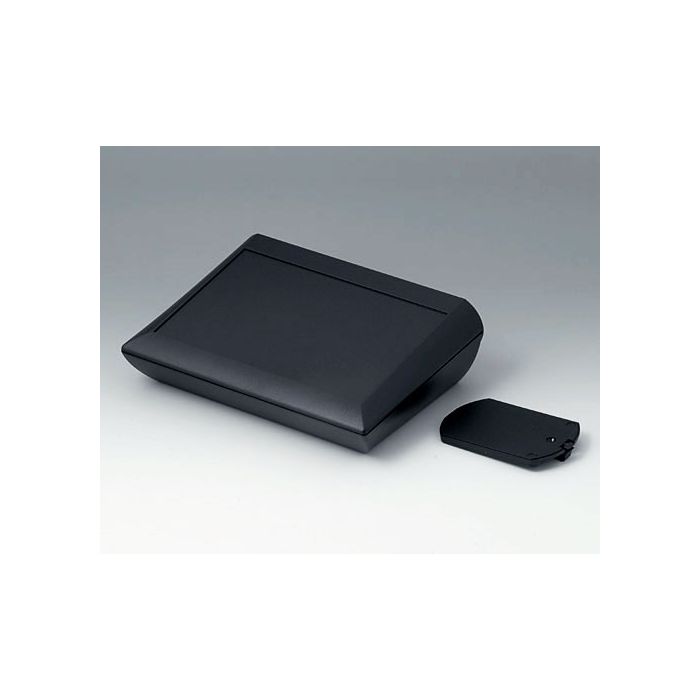

Three-part high construction case, 10° sloped operating area, interfaces area, battery compartment option.
Three-part case in high construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear. Version: With opening for inserting a battery compartment at your choice in the bottom part, lid of battery compartment to be snapped-in. Supply: 1 top and bottom part, lid of battery compartment, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A0620119 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 200 mm |
| Height | 62.8 mm |
| Depth | 150 mm |
| Protection class | IP 40 |
| PCB Length, Base | 123 mm |
| PCB Width, Base | 174 mm |
| PCB Length, Top | 137 mm |
| PCB Width, Top | 185 mm |
| Keypad Length | 110 mm |
| Keypad Width | 168 mm |
