OKW - Three-part enclosure, modern color combo, high-quality material, wall mountable, supplied with cover and assembly kit [180 mm x 180 mm x 48.5 mm]
Lei 156.00
Lei 128.93
In stock
SKU
B3218201
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Three-part enclosure, modern color combo, high-quality material, wall mountable, supplied with cover and assembly kit

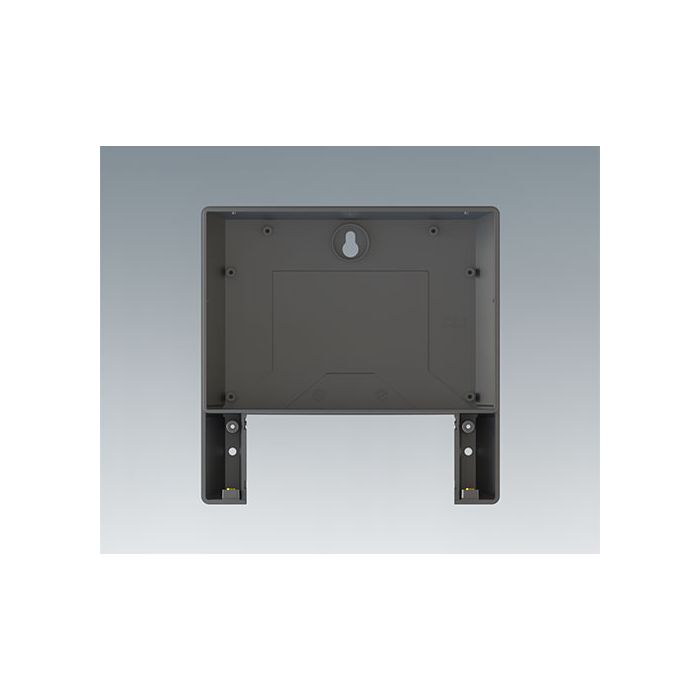

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material. Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left. Supply: 1 bottom part and 1 top cover, 1 lid and 1 assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B3218201 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | Top cover and lid light grey RAL 7035, Bottom part lava |
| Standards | RoHS compliant, REACH compliant |
| Width | 180 mm |
| Height | 180 mm |
| Depth | 48.5 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 112 mm |
| PCB Width, Base | 154 mm |
| PCB Length, Top | 114 mm |
| PCB Width, Top | 168 mm |
