OKW - Three-part enclosure, modern color combo, high-quality material
Lei 201.00
Lei 168.91
In stock
SKU
B3222101
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

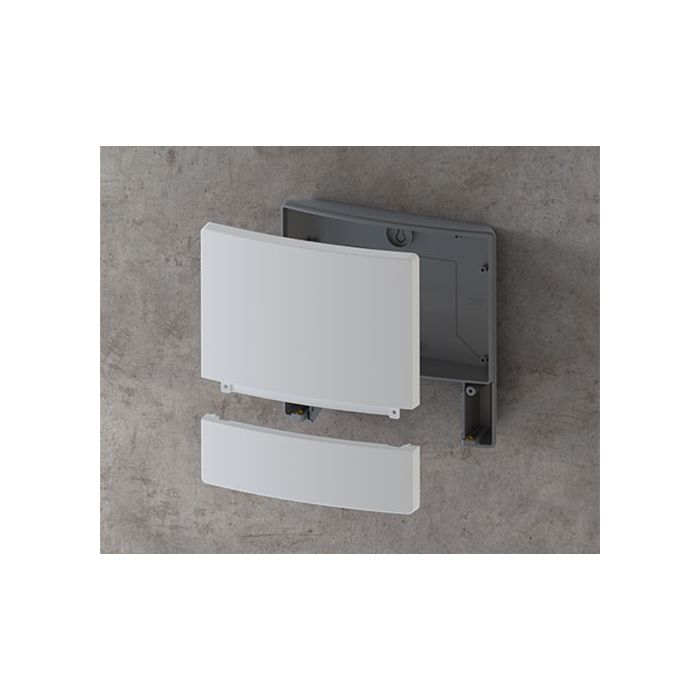

Three-part enclosure, modern color combo, high-quality material
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material. Version: Bottom part without openings. Supply: 1 bottom part and 1 top cover, 1 lid and 1 assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | Top cover and lid light grey RAL 7035, Bottom part lava |
| Standards | RoHS compliant, REACH compliant |
| Width | 220 mm |
| Height | 220 mm |
| Depth | 50.5 mm |
| Protection class | IP 65 opt. Necessary accessories: sealing kit, IP 40 |
| PCB Length, Base | 152 mm |
| PCB Width, Base | 194 mm |
| PCB Length, Top | 154 mm |
| PCB Width, Top | 208 mm |
