OKW - Threaded case shell for top or bottom use with membrane keyboard compatibility.
Lei 226.00
Lei 189.92
In stock
SKU
C4243601
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

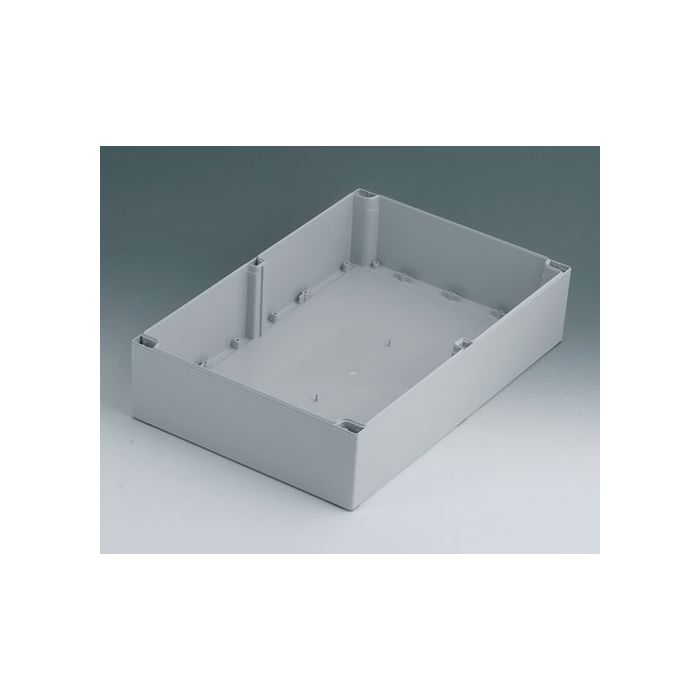

Threaded case shell for top or bottom use with membrane keyboard compatibility.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 240 mm |
| Length | 360 mm |
| Height | 80 mm |
| PCB Length, Base | 327 mm |
| PCB Width, Base | 205 mm |
| Keypad Length | 322.9 mm |
| Keypad Width | 211.9 mm |
