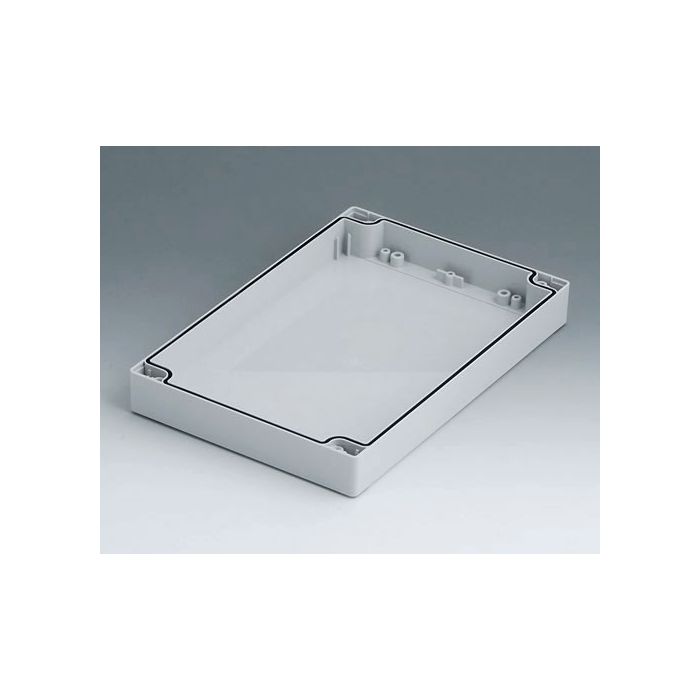

OKW - Threaded case shell for top or bottom use, with membrane keyboard recess. [160 mm x 240 mm x 30 mm]
Lei 130.00
Lei 109.24
In stock
SKU
C1162402
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Threaded case shell for top or bottom use, with membrane keyboard recess.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer code | C1162402 |
|---|---|
| Manufacturer | OKW |
| Material | PC (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 160 mm |
| Length | 240 mm |
| Height | 30 mm |
| PCB Length, Top | 200 mm |
| PCB Width, Top | 145 mm |
| Keypad Length | 202.5 mm |
| Keypad Width | 145.3 mm |
