OKW - Threaded case shell for top or bottom use, with membrane keyboard recess.
Lei 60.00
Lei 50.42
In stock
SKU
C0161601
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

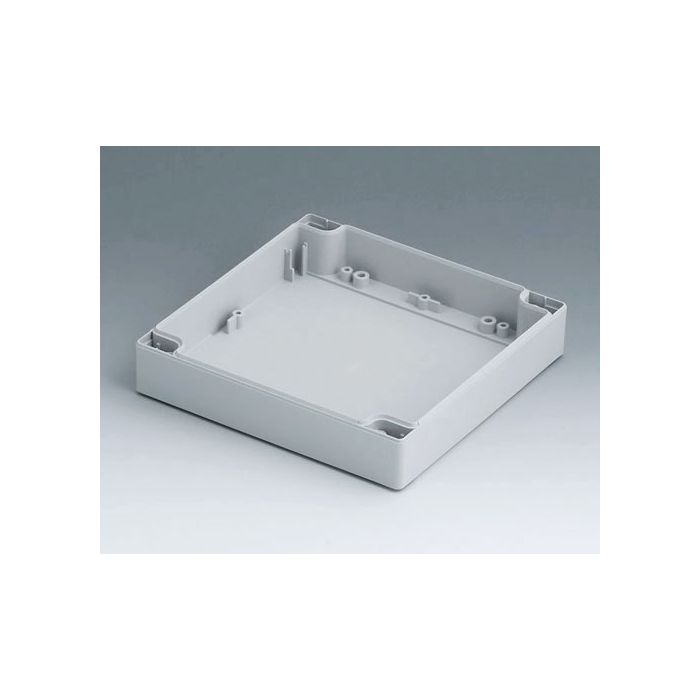

Threaded case shell for top or bottom use, with membrane keyboard recess.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 160 mm |
| Length | 160 mm |
| Height | 30 mm |
| PCB Length, Base | 120 mm |
| PCB Width, Base | 145 mm |
| Keypad Length | 122.6 mm |
| Keypad Width | 145.5 mm |
