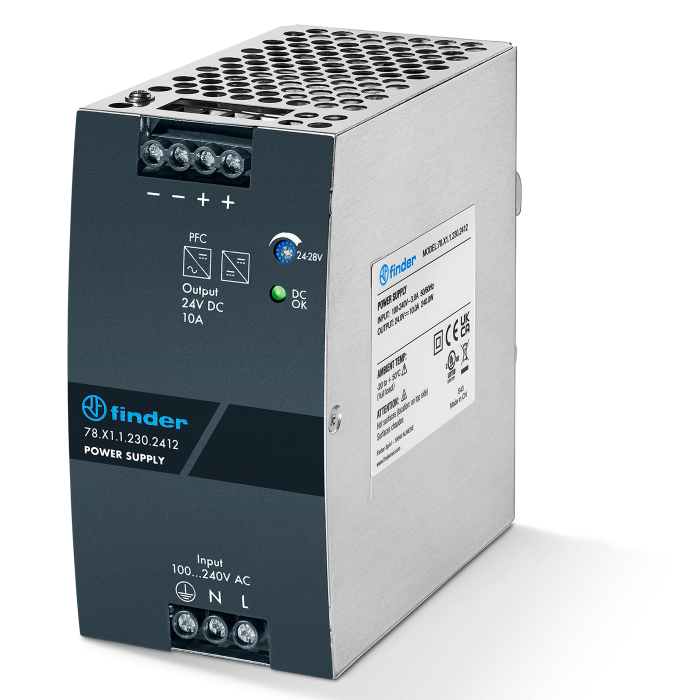

FINDER - 78.X1.1.230.2412 - Switch mode power supply, single-phase, 24 V DC, 240 W (10 A), 35 mm rail mount

This variant: 78.X1.1.230.2412 — Switch mode power supply, single-phase, 24 V DC, 240 W (10 A), 35 mm rail mount

Industrial Single phase Switch Mode DC Power Supply Type 78.X1.1.230.2412, 24 V DC, 240 W output, Output adjustable between 24-28 V, Double stage with active PFC (Power Factor Correction).

Technical features:

• High efficiency (up to 92%)
• Low stand-by power consumption
• Active PFC
• DC output voltage adjustable
• Short circuit protection with hiccup auto-recovery
• Thermal protection with auto shoutdown
• High peak current up to 30%
• Boost current up to 30% for 3 s (depending on version)
• Overvoltage protection: Varistor
• Compliant with IEC/EN 62368-1, UL 61010
• Parallel working for increased load current (with external diode) or redundancy
• 35 mm rail (EN 60715) mount

Documentation:

• Report
• Technical datasheet
• Instruction manual
• Declaration of conformity
