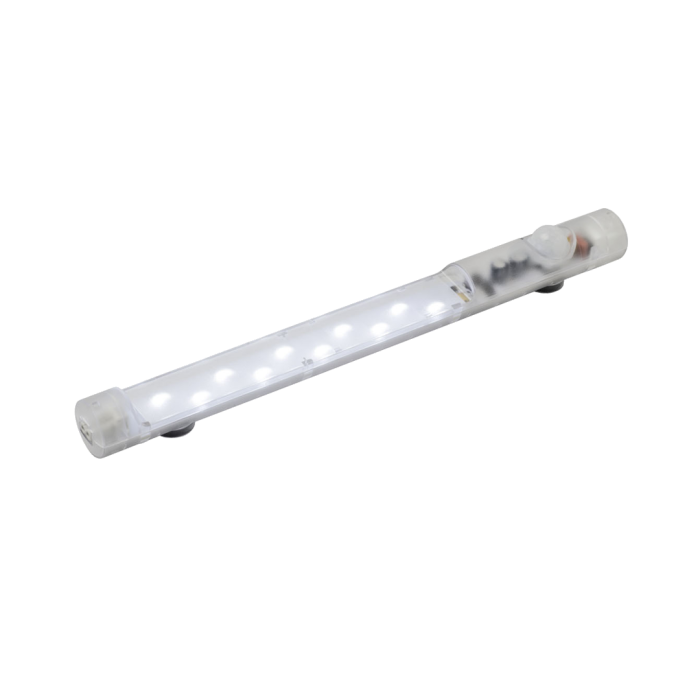

STEGO - 02541.3-10 - LED 025 lamp, AC 100-240 V / DC 90-110 V, magnet mount, PIR motion sensor, IP20 [32×351×32 mm]
Lei 572.00
Lei 472.73
In stock
SKU
SG02541310
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Single piece. LED enclosure lamp, AC 100-240 V / DC 90-110 V, 5 W / 400 lm. Mounting: magnet base. Switching: PIR motion sensor (no manual switch). IP20; approvals CE, UL, VDE, EAC.
This variant: AC 100-240 V / DC 90-110 V, magnet mount, PIR motion sensor.
Space-saving Ecoline LED enclosure lamp for use in enclosures, casings and technical installation spaces with high component density. High service life of the switch cabinet lamp (LED) of 60,000 hours, mounting by magnet, clip or screw fixing. Pressure clamps for the electrical connection and daisy chain.
- Switching options: PIR motion detector, on/off switch, without switch (prepared for external switch)
- Wide-range voltage
- Luminous flux 400 Lm, daylight white: 6000 to 7000 K
- Pressure clamp connections
- Easily snaps into the clip holder, rotatable on both sides
- 180° angle of rotation for flexible illumination (example above)
Enclosure lamp type LED 025 Ecoline, AC 100-240V (min.90V AC, max.265V AC) / DC 90-110V (min.80V DC, max.125V DC), 5W/400Lm, magnet fixing, PIR movement sensor ; IP20 ; approvals CE,UL,VDE,EAC
| Manufacturer article number | 02541.3-10 |
|---|---|
| EAN code | 4251823459803 |
| ETIM code | EC000321 |
| CN code | 94054039 |
| Supply voltage AC | 100-240 V |
| Luminous flux | 400 lm |
| Protection class | IP20 |
| Dimensions (W x L x H) | 32 x 351 x 32 mm |
| Weight | 0.2 kg |
| Country of origin | DE |
| Approvals | CE, VDE, EAC |
Documentation: https://www.stego-group.com/products/led-025
Write Your Own Review
| Country of origin | DE |
|---|---|
| Approvals | CE, VDE, EAC |
| EAN code | 4251823459803 |
| Device height | 32 mm |
| Device width | 32 mm |
| Device depth | 351 mm |
| Input voltage range (V AC) | 100-240 V |
| Lumen output (lm) | 400 lm |
| Manufacturer | STEGO |
| Manufacturer code | 02541.3-10 |
| Order Unit | 1 pc |
