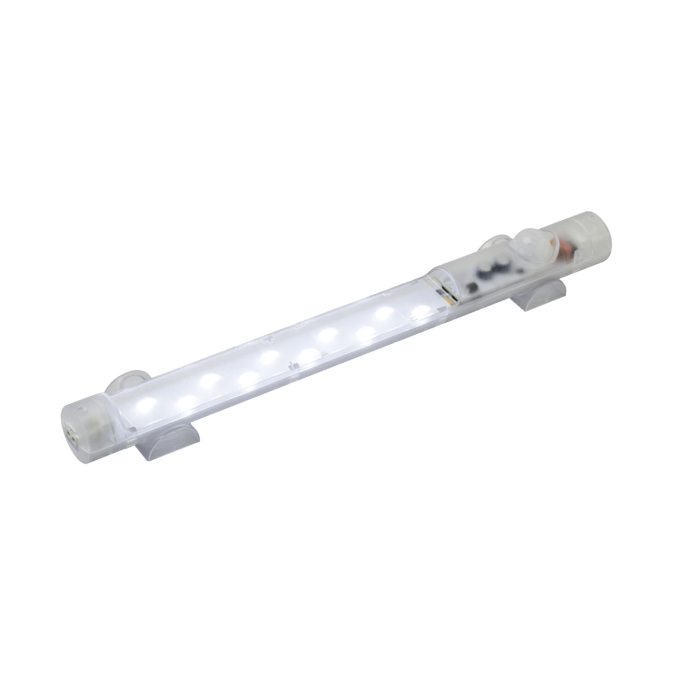

STEGO - 02541.1-11 - LED 025 lamp, DC 24-48 V, screw mount, PIR motion sensor, IP20 [32×351×32 mm]
Lei 668.00
Lei 552.07
In stock
SKU
SG02541111
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Single piece. LED enclosure lamp, DC 24-48 V, 5 W / 400 lm. Mounting: screw mounting. Switching: PIR motion sensor (no manual switch). IP20; approvals CE, UL, VDE, EAC.
This variant: DC 24-48 V, screw mount, PIR motion sensor.
Space-saving Ecoline LED enclosure lamp for use in enclosures, casings and technical installation spaces with high component density. High service life of the switch cabinet lamp (LED) of 60,000 hours, mounting by magnet, clip or screw fixing. Pressure clamps for the electrical connection and daisy chain.
- Switching options: PIR motion detector, on/off switch, without switch (prepared for external switch)
- Wide-range voltage
- Luminous flux 400 Lm, daylight white: 6000 to 7000 K
- Pressure clamp connections
- Easily snaps into the clip holder, rotatable on both sides
- 180° angle of rotation for flexible illumination (example above)
Enclosure lamp type LED 025 Ecoline, DC 24-48V (min.20V DC, max.60V DC), 5W/400Lm, screw fixing, PIR movement sensor ; IP20 ; approvals CE,UL,VDE,EAC
| Manufacturer article number | 02541.1-11 |
|---|---|
| EAN code | 4251823459780 |
| ETIM code | EC000321 |
| CN code | 94054039 |
| Supply voltage DC | 24-48 V |
| Luminous flux | 400 lm |
| Protection class | IP20 |
| Dimensions (W x L x H) | 32 x 351 x 32 mm |
| Weight | 0.2 kg |
| Country of origin | DE |
| Approvals | CE, VDE, EAC |
Documentation: https://www.stego-group.com/products/led-025
Write Your Own Review
| Country of origin | DE |
|---|---|
| Approvals | CE, VDE, EAC |
| EAN code | 4251823459780 |
| Device height | 32 mm |
| Device width | 32 mm |
| Device depth | 351 mm |
| Operating voltage DC/AC | 24-48 V |
| Lumen output (lm) | 400 lm |
| Manufacturer | STEGO |
| Manufacturer code | 02541.1-11 |
| Order Unit | 1 pc |
