OKW - Modern small enclosure for wearable technologies with PCB location bars and internal power supply options.
Lei 64.00
Lei 53.78
In stock
SKU
B1606107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

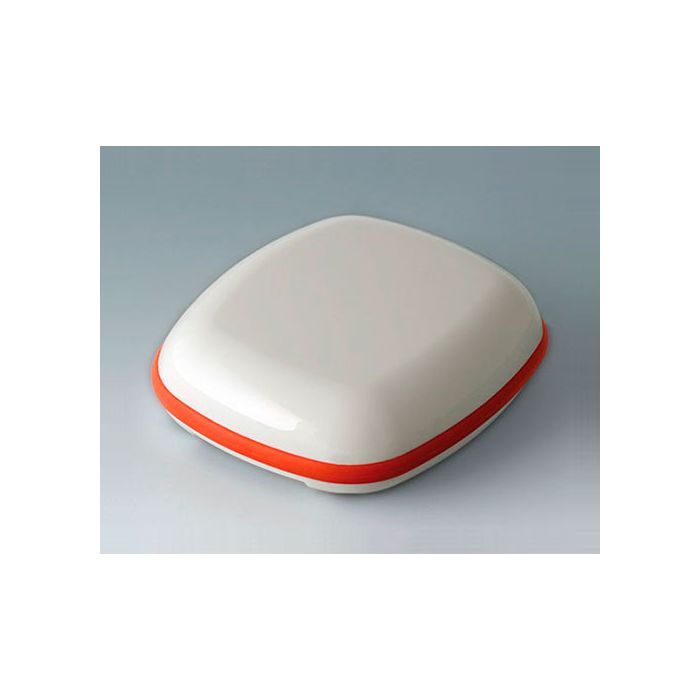

Modern small enclosure for wearable technologies with PCB location bars and internal power supply options.
Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively. Wrist strap, fastening kit etc. as accessories. Note: For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA (UL 94 HB) - Bottom and top part, TPV 50A - Sealing ring |
| Colour | Bottom and top part traffic white RAL 9016, Sealing ring vermilion RAL 2002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 46 mm |
| Length | 55 mm |
| Height | 17 mm |
| Protection class | IP 65 |
| PCB Length, Base | 39.6 mm |
| PCB Width, Base | 38 mm |
