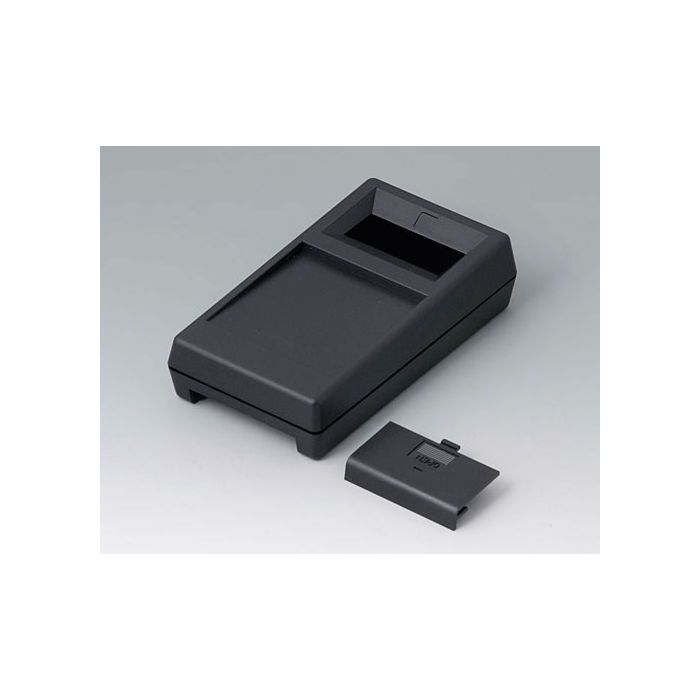

OKW - Small hand-held case with recessed area for keyboards and modules. Battery compartment for 9V or 1.5V cells. [80 mm x 145 mm x 38.5 mm]
Lei 64.00
Lei 53.78
In stock
SKU
A9062019
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Small hand-held case with recessed area for keyboards and modules. Battery compartment for 9V or 1.5V cells.
Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs. Version: With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C). Supply: Top and base part, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9062019 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 80 mm |
| Length | 145 mm |
| Height | 38.5 mm |
| PCB Length, Base | 102 mm |
| PCB Width, Base | 71 mm |
| PCB Length, Top | 106 mm |
| PCB Width, Top | 71 mm |
| Keypad Length | 65 mm |
| Keypad Width | 64.9 mm |
