OKW - Small hand-held box, recessed operation area, IP65 sealing, top version with closed area. [83 mm x 152 mm x 33.5 mm]
Lei 127.00
Lei 104.96
In stock
SKU
A9073117
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

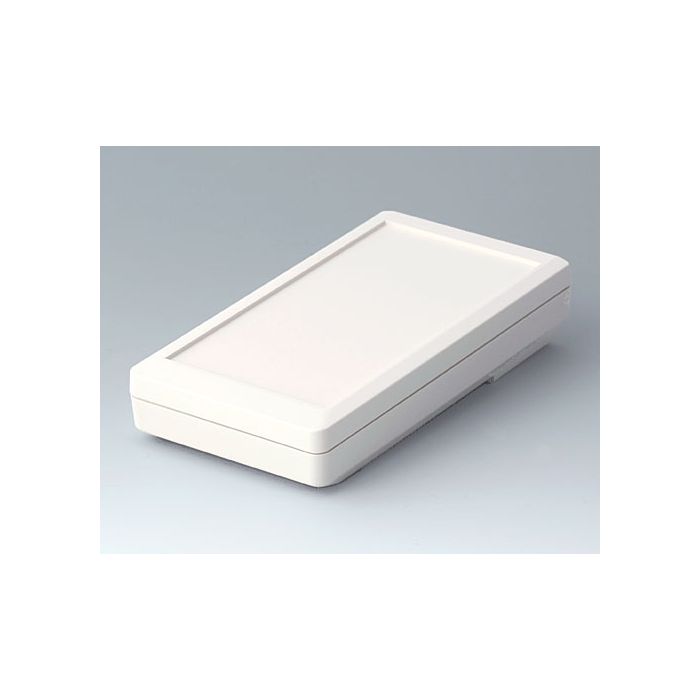

Small hand-held box, recessed operation area, IP65 sealing, top version with closed area.
Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory. Version: Top with closed operating area, recessed by 1,7 mm. Supply: Case-top and base, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9073117 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 83 mm |
| Length | 152 mm |
| Height | 33.5 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 142 mm |
| PCB Width, Base | 72 mm |
| PCB Length, Top | 141 mm |
| PCB Width, Top | 72 mm |
| Keypad Length | 129 mm |
| Keypad Width | 67.7 mm |
