OKW - Hand-held box with battery compartment, protective operation area, IP65 sealing, LC module cutout
Lei 129.00
Lei 108.40
Out of stock
SKU
A9073207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

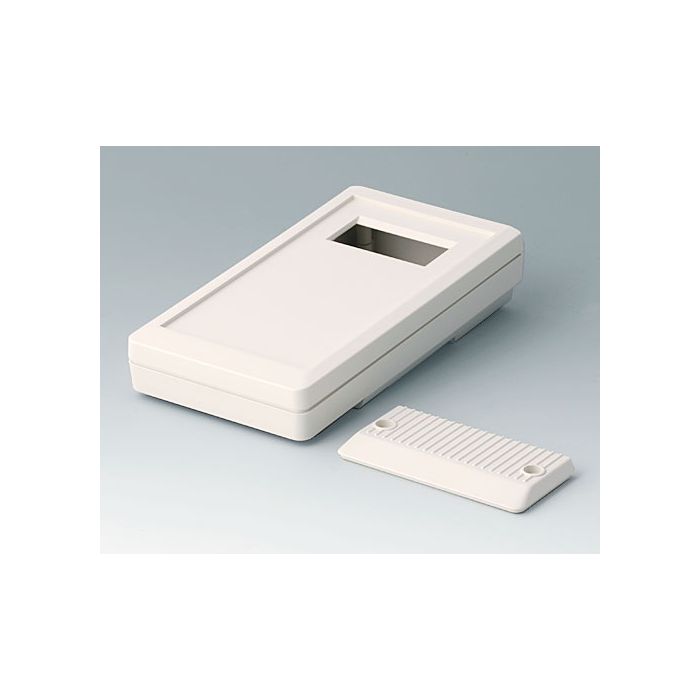

Hand-held box with battery compartment, protective operation area, IP65 sealing, LC module cutout
Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory. Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9073207 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 83 mm |
| Length | 152 mm |
| Height | 33.5 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 104 mm |
| PCB Width, Base | 72 mm |
| PCB Length, Top | 141 mm |
| PCB Width, Top | 72 mm |
| Keypad Length | 129 mm |
| Keypad Width | 67.7 mm |
