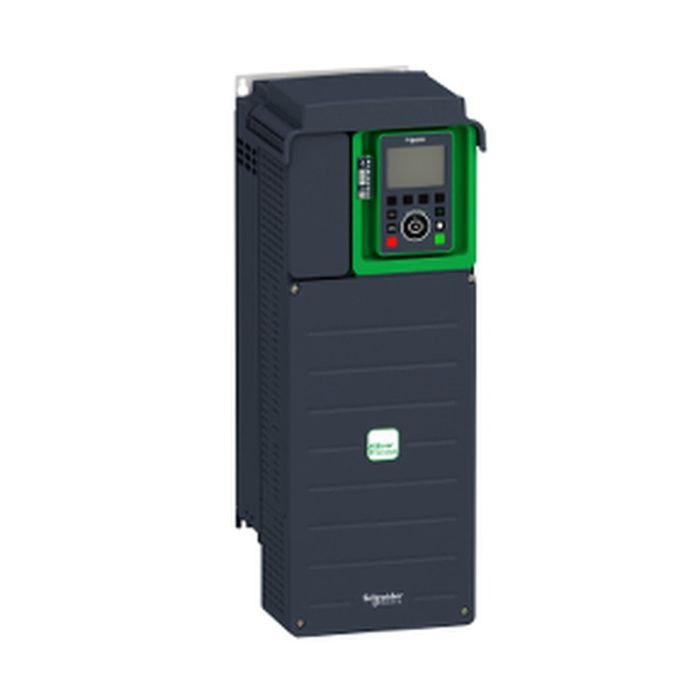

SCHNEIDER Electric - Variable speed drive, Altivar Process ATV900, ATV930, 15 kW, 400/480 V, with braking unit, IP21
Lei 10,822.00
Lei 8,943.80
In stock
Only 1 left
SKU
ATV930D15N4
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
| Manufacturer | SCHNEIDER Electric |
|---|---|
| Manufacturer code | ATV930D15N4 |
| Order Unit | Pce |
| Range of product | Altivar Process ATV900 |
| Product or component type | Variable speed drive |
| Device short name | ATV930 |
| Device application | Industrial application |
| Variant | Standard version; With braking chopper |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Marking | CE |
| Height mm | 545.9 mm |
| Depth mm | 235 mm |
| Width in mm | 211 mm |
| Net weight | 13.6 kg |
| Product certifications | UL |
| Standards | UL 508C |
| IP degree of protection | IP21 conforming to IEC 61800-5-1 |
| Motor power kW | 15 kW (normal duty) |
| Motor power hp | 20 hp normal duty |
| Line current | 27 A at 380 V (normal duty) |
| Continuous output current | 31.7 A at 4 kHz for normal duty |
| Mounting mode | Wall mount |
