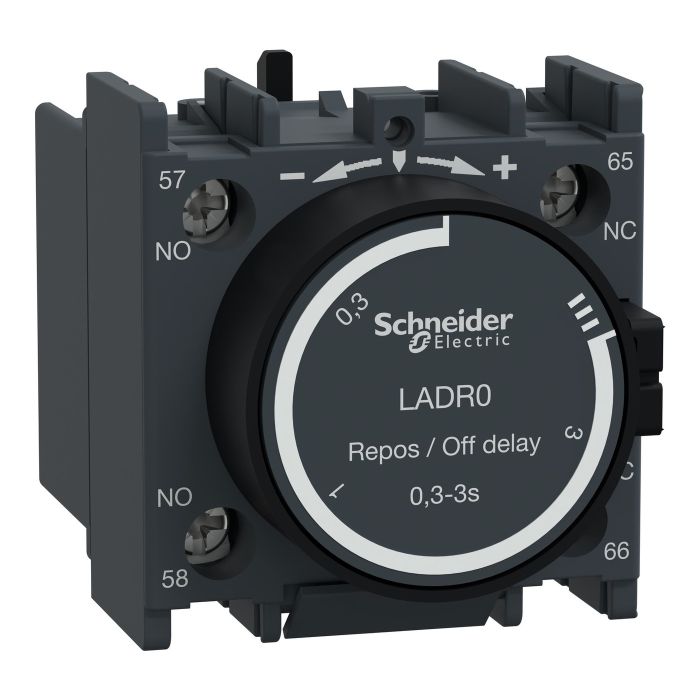

SCHNEIDER Electric - TeSys Deca time delay auxiliary contact block - 1NO+1NC, off delay 0.3-3s, front, screw clamp terminals
Lei 252.00
Lei 208.26
In stock
SKU
LADR0
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
TeSys Deca off-delay time delay auxiliary contact block, 1NO+1NC, 0.3-3s, front mount, screw clamp terminals.
TeSys Deca time delay auxiliary contact block — off-delay timer block for TeSys D contactors (LC1D) and CAD control relays. It provides one NO and one NC timed contact with an adjustable off-delay (0.3...3 s) and mounts on the front of the contactor. Screw clamp terminals.
| Range | TeSys Deca (TeSys D) |
| Product type | Time delay auxiliary contact block |
| Timer type | Off delay |
| Time delay range | 0.3...3 s |
| Pole contact composition | 1 NO + 1 NC |
| Mounting location | Front |
| Connections - terminals | Screw clamp terminals, 1...2.5 mm² |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ui] rated insulation voltage | 690 V (IEC 60947-5-1) |
| [Ith] conventional thermal current | 10 A at ≤ 60 °C |
| Associated fuse rating | 10 A gG (IEC 60947-5-1) |
| Mechanical durability | 5 million cycles |
| Minimum switching current / voltage | 5 mA / 17 V |
| IP degree of protection | IP2x (VDE 0660) |
| Standards | IEC 60947-5-1, EN 60947-5-1, VDE 0660 |
| Product certifications | CSA, UL |
| Ambient air temperature (operation) | -5...60 °C |
Documents & Downloads:
Write Your Own Review
| Manufacturer | SCHNEIDER Electric |
|---|---|
| Manufacturer code | LADR0 |
| Order Unit | Pce |
