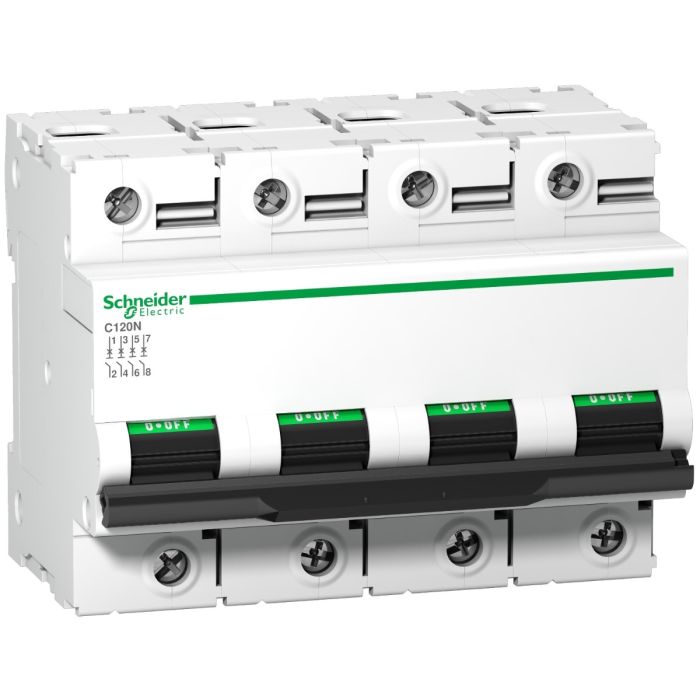

SCHNEIDER Electric - Miniature circuit-breaker, Acti9 C120N, 4P, 125 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2)
Lei 1,335.00
Lei 1,103.31
In stock
Only 2 left
SKU
A9N18376
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Write Your Own Review
| Manufacturer | SCHNEIDER Electric |
|---|---|
| Manufacturer code | A9N18376 |
| Order Unit | Pce |
| Range | Acti 9 |
| Product Name | C120 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C120N |
| Device application | Distribution |
| Poles description | 4P |
| Number of protected poles | 4 |
| [In] rated current | 125 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Magnetic tripping limit | 5...10 x In |
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| [Ui] Rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] Rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | NO |
| 9 mm pitches | 12 |
| Height mm | 81 mm |
| Width in mm | 108 mm |
| Depth mm | 73 mm |
| Net weight | 0.82 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 5000 cycles conforming to IEC 60947-2 |
| Connections - terminals | Tunnel type terminals1…50 mm² rigid |
| Wire stripping length | 15 mm |
| Tightening torque | 3.5 N.m |
| Earth-leakage protection | Separate block |
| Standards | EN/IEC 60947-2 |
| Product certifications | EAC |
| IP degree of protection (IEC 60529) | IP20 |
| Pollution degree | 3 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
