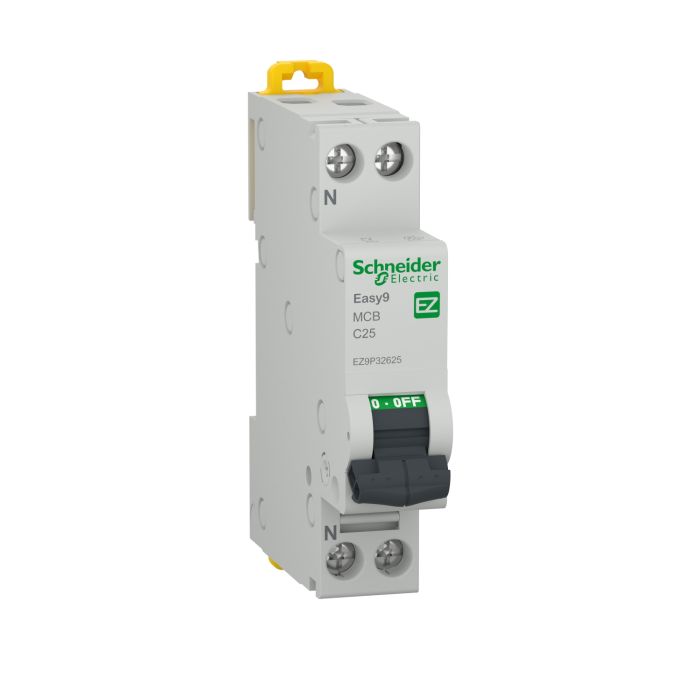

SCHNEIDER - EZ9P32625 EASY9 MINIATURE CIRCUIT-BREAKER 1P+N 4500 C 25A
Lei 28.09
Lei 23.61
In stock
Only 14 left
SKU
EZ9P32625
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Write Your Own Review
| Manufacturer | SCHNEIDER Electric |
|---|---|
| Manufacturer code | EZ9P32625 |
| Order Unit | Pce |
| Range | Easy9 |
| Product or component type | Miniature circuit-breaker |
| Poles description | 1P + N |
| Number of protected poles | 1 |
| [In] rated current | 25 A |
| [Ue] rated operational voltage | 230 V c.a. 50 Hz |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 4500 A Icn at 230 V AC 50 Hz conforming to SR EN 60898-1 |
| Suitability for isolation | Yes |
| Network frequency | 50 Hz |
| [Uimp] Rated impulse withstand voltage | 4 kV |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | Without |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height mm | 81 mm |
| Width in mm | 18 mm |
| Depth mm | 78 mm |
| Colour | White |
| Mechanical durability | 10000 cic |
| Electrical durability | 4000 cic |
| Connections - terminals | Tunnel type terminal (up or down) 1… 16 mm² rigid |
| Tightening torque | 2 N.m |
| Earth-leakage protection | Without |
| Standards | SR EN 60898-1 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…60 °C |
