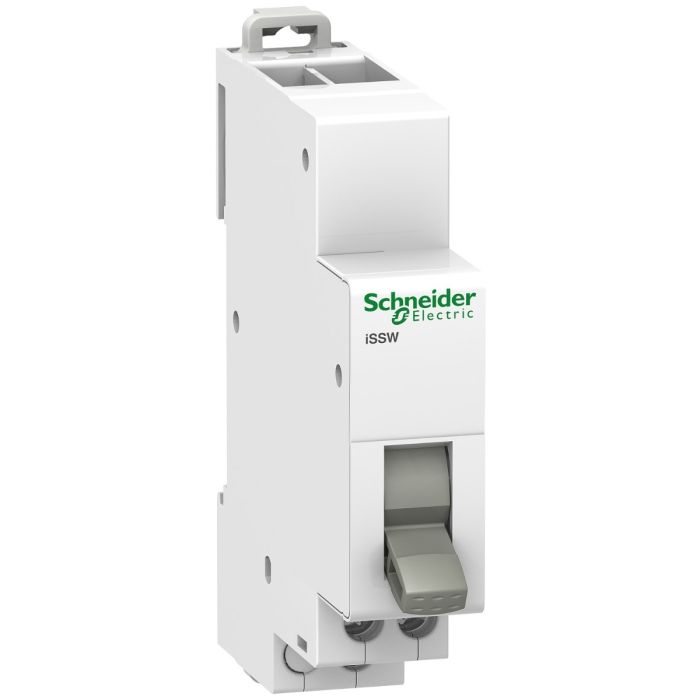

SCHNEIDER Electric - Linear switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions
Lei 47.00
Lei 39.50
In stock
Only 3 left
SKU
A9E18073
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Write Your Own Review
| Manufacturer | SCHNEIDER Electric |
|---|---|
| Manufacturer code | A9E18073 |
| Order Unit | Pce |
| Range | Acti 9 |
| Product Name | Acti 9 iSSW |
| Product or component type | Linear switch |
| Device short name | ISSW |
| Device application | Electrical circuit control |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Control type | Toggle 3 positions |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height mm | 82 mm |
| Width in mm | 18 mm |
| Depth mm | 75 mm |
| Colour | White |
| Electrical durability | AC-22: 30000 cycles cos Phi = 0.8 |
| Connections - terminals | Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| Standards | IEC 60669-1 |
| IP degree of protection (IEC 60529) | IP20 |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
