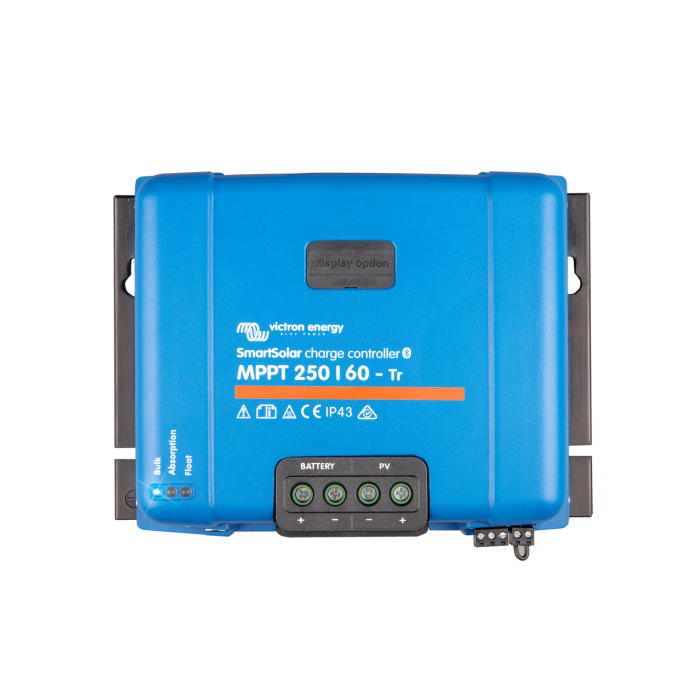

VICTRON ENERGY - SCC125060221 - SmartSolar MPPT 250/60-Tr
Lei 2,164.00
Lei 1,788.43
In stock
SKU
VICSCC125060221
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Manufacturer code: SCC125060221
SmartSolar MPPT 150/45 up to 250/70
Solar charge controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Models:12/24/36/48 Volt
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
Optional SmartSolar Control Display
By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.
Documents & Downloads:
Write Your Own Review
| Manufacturer | VICTRON ENERGY |
|---|---|
| Manufacturer code | SCC125060221 |
| GTIN code | 8719076050841 |
| Order Unit | Pce |
| Battery voltage | 12V; 24V; 48V Auto Select (software tool needed to select 36V) |
| Colour | Blue (RAL 5012) |
| Weight Kg | 3,2 Kg |
| Dimensions (h x w x d) | 185 x 250 x 95 mm |
| Standards | Safety: EN/IEC 62109-1, UL 1741, CSA C22.2 1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V. 2) A PV array with a higher short circuit current may damage the controller. 3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels Maximum current per MC4 connector: 30A (the MC4 connectors are parallel connected to one MPPT tracker) |
