OKW - Rotary potentiometer knob with collet system for easy assembly and adjustment.
Lei 10.56
Lei 8.87
Out of stock
SKU
A2610030
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

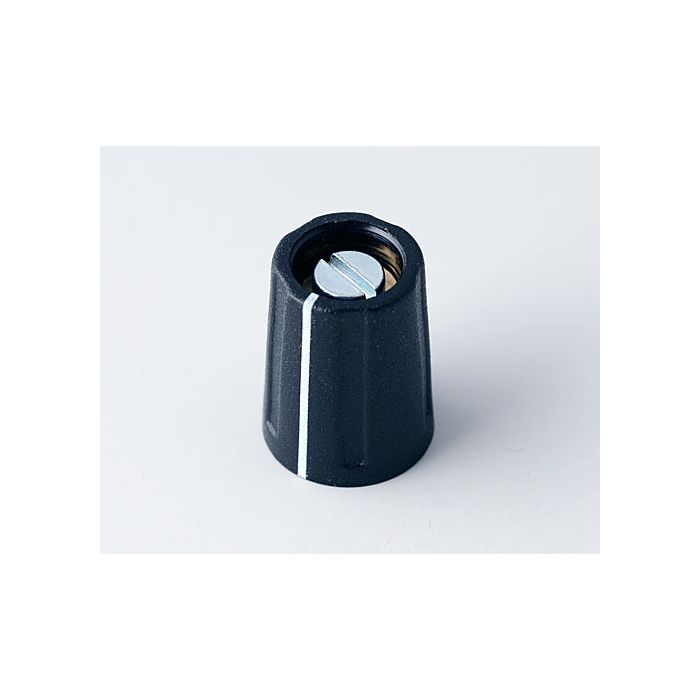

Rotary potentiometer knob with collet system for easy assembly and adjustment.
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.4 Nm, function = 0.4 Nm.
Supply
1 round knob
Write Your Own Review
| Material | ABS (UL 94 HB) |
|---|---|
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Diameter | 10 mm |
| Height | 14 mm |
| Bore hole | 3 mm |
| Manufacturer | OKW |
| Manufacturer code | A2610030 |
