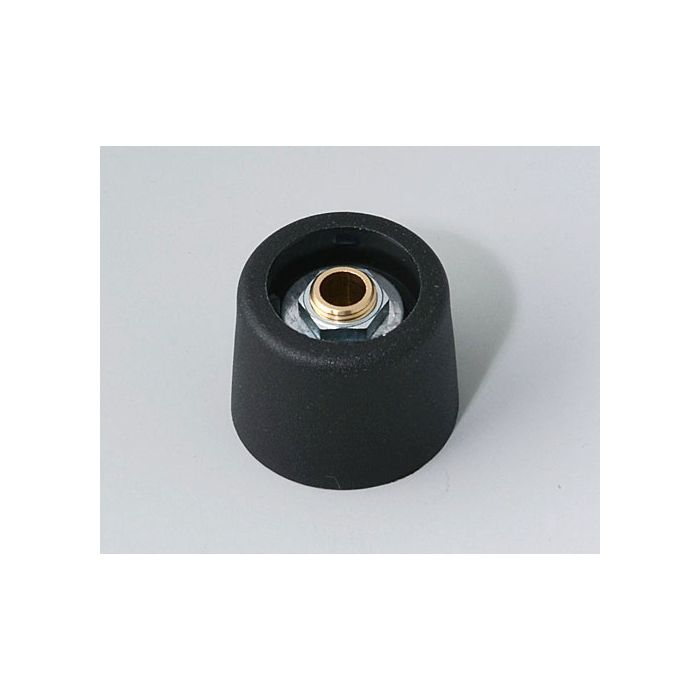

OKW - Rotary potentiometer knob assembly system with collet for DIN 41591 shafts. Max torque: 1.0 Nm assembly, 0.9 Nm function.
Lei 12.67
Lei 10.65
In stock
SKU
A3120639
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Rotary potentiometer knob assembly system with collet for DIN 41591 shafts. Max torque: 1.0 Nm assembly, 0.9 Nm function.
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer. Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.
Write Your Own Review
| Material | PA 6 |
|---|---|
| Colour | nero |
| Standards | RoHS compliant, REACH compliant |
| Diameter | 20 mm |
| Height | 16 mm |
| Bore hole | 1/4 |
| Manufacturer | OKW |
