OKW - Robust pocket-box with sealing, PCB mounting, battery compartment
Lei 57.00
Lei 47.90
Out of stock
SKU
A9070117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

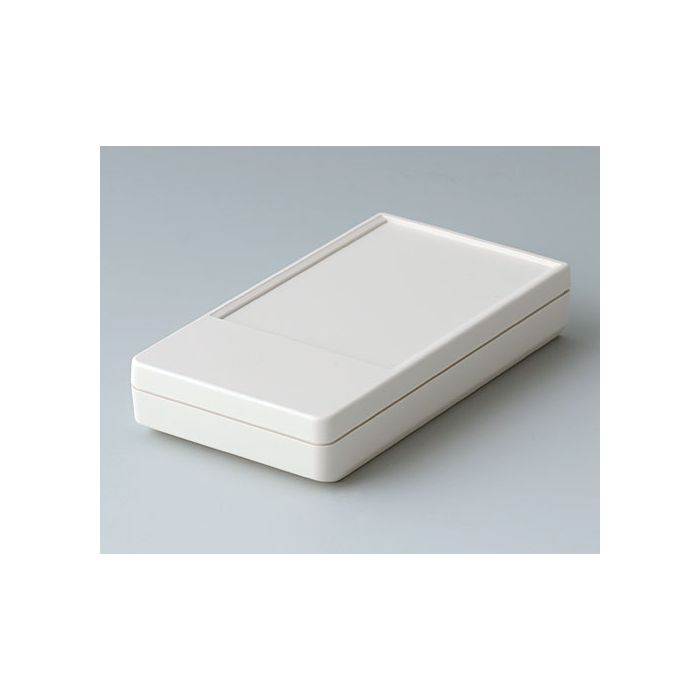

Robust pocket-box with sealing, PCB mounting, battery compartment
Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9070117 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 46 mm |
| Length | 85 mm |
| Height | 16 mm |
| Protection class | IP 54 |
| PCB Length, Base | 44 mm |
| PCB Width, Base | 39 mm |
| Keypad Length | 57.9 mm |
| Keypad Width | 39.9 mm |
