OKW - Robust pocket-box with sealing, control area, screw pillars, two-piece version, battery compartment
Lei 57.00
Lei 47.90
Out of stock
SKU
A9070119
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

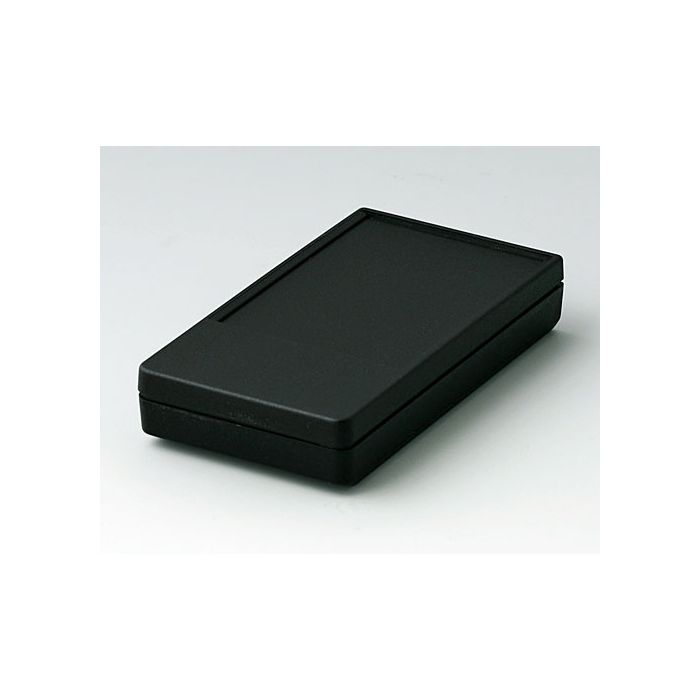

Robust pocket-box with sealing, control area, screw pillars, two-piece version, battery compartment
Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9070119 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 46 mm |
| Length | 85 mm |
| Height | 16 mm |
| Protection class | IP 54 |
| PCB Length, Base | 44 mm |
| PCB Width, Base | 39 mm |
| Keypad Length | 57.9 mm |
| Keypad Width | 39.9 mm |
