OKW - Robust pocket-box with sealing, recessed control area for keyboards, battery compartment for 2 x 1.5 V cells.
Lei 80.00
Lei 67.23
Out of stock
SKU
A9071117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Robust pocket-box with sealing, recessed control area for keyboards, battery compartment for 2 x 1.5 V cells.

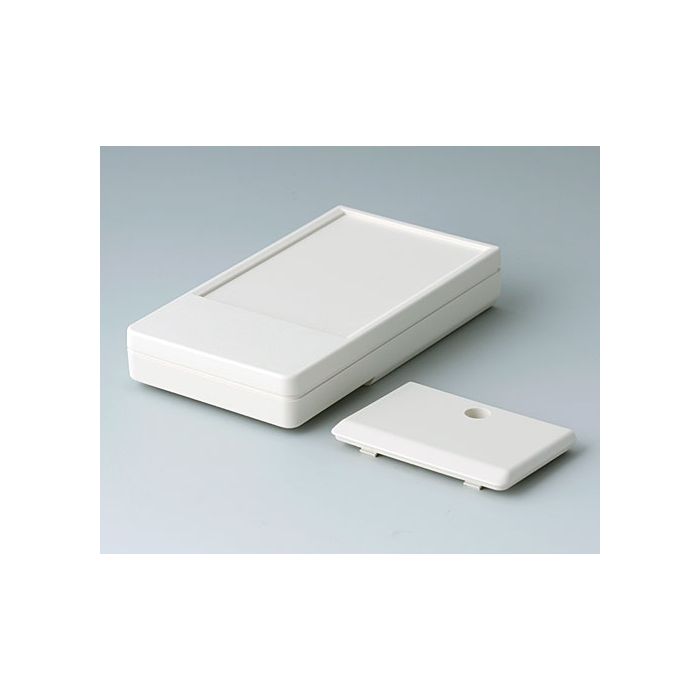

Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9071117 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 58 mm |
| Length | 105 mm |
| Height | 18.5 mm |
| Protection class | IP 54 |
| PCB Length, Base | 60 mm |
| PCB Width, Base | 51 mm |
| PCB Length, Top | 72 mm |
| PCB Width, Top | 51 mm |
| Keypad Length | 71.95 mm |
| Keypad Width | 49.95 mm |
