OKW - Robust pocket-box for PCBs, with battery compartment.
Lei 48.00
Lei 40.34
Out of stock
SKU
A9070109
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

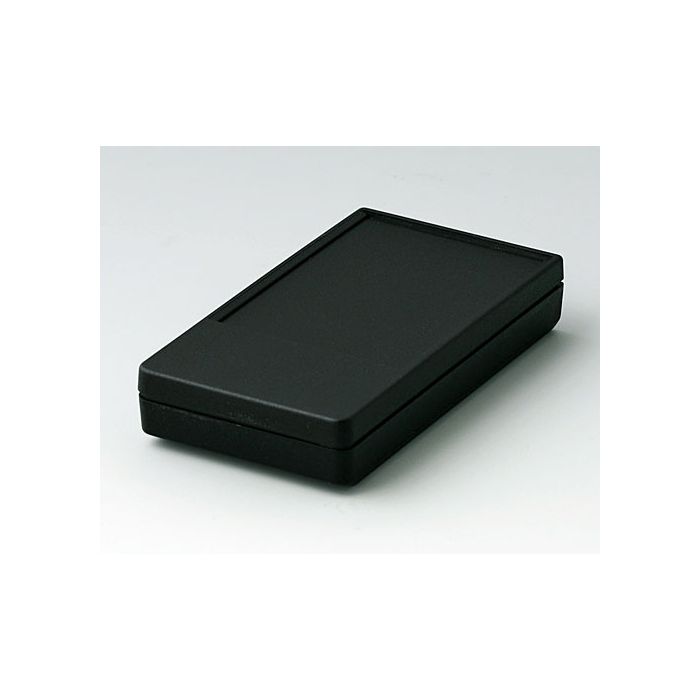

Robust pocket-box for PCBs, with battery compartment.
Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9070109 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 46 mm |
| Length | 85 mm |
| Height | 16 mm |
| Protection class | IP 41 |
| PCB Length, Base | 44 mm |
| PCB Width, Base | 39 mm |
| Keypad Length | 57.9 mm |
| Keypad Width | 39.9 mm |
