OKW - Robust pocket box for PCBs, membrane keyboards, and batteries.
Lei 81.00
Lei 68.07
Out of stock
SKU
A9072209
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

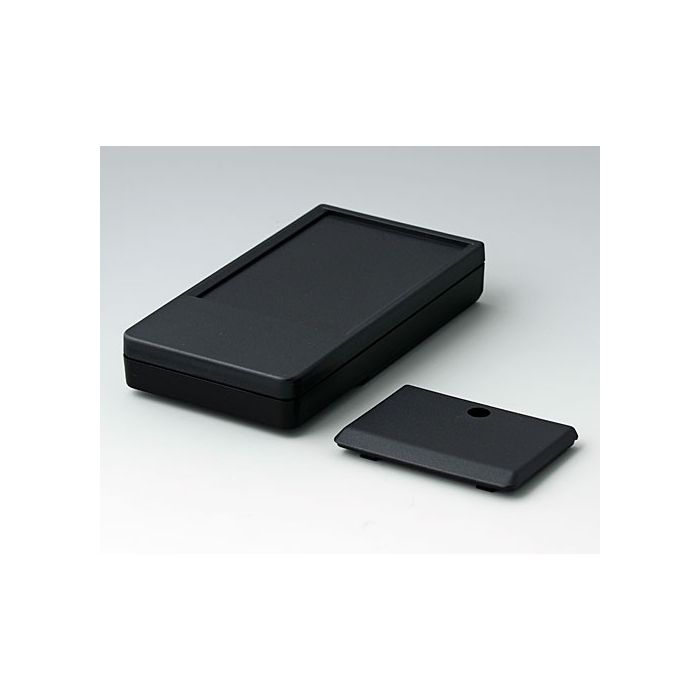

Robust pocket box for PCBs, membrane keyboards, and batteries.
Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9072209 |
|---|---|
| Manufacturer | OKW |
| Material | PMMA (IR) (UL 94 HB), ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 65 mm |
| Length | 120 mm |
| Height | 22 mm |
| Protection class | IP 41 |
| PCB Length, Base | 68 mm |
| PCB Width, Base | 58 mm |
| PCB Length, Top | 81 mm |
| PCB Width, Top | 58 mm |
| Keypad Length | 79.7 mm |
| Keypad Width | 54.8 mm |
