OKW - Robust hand-held enclosure with front panel assembly from rear, screw pillars for PCBs, battery compartment, frame cover, and assembly kit.
Lei 294.00
Lei 247.06
In stock
SKU
A9046207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

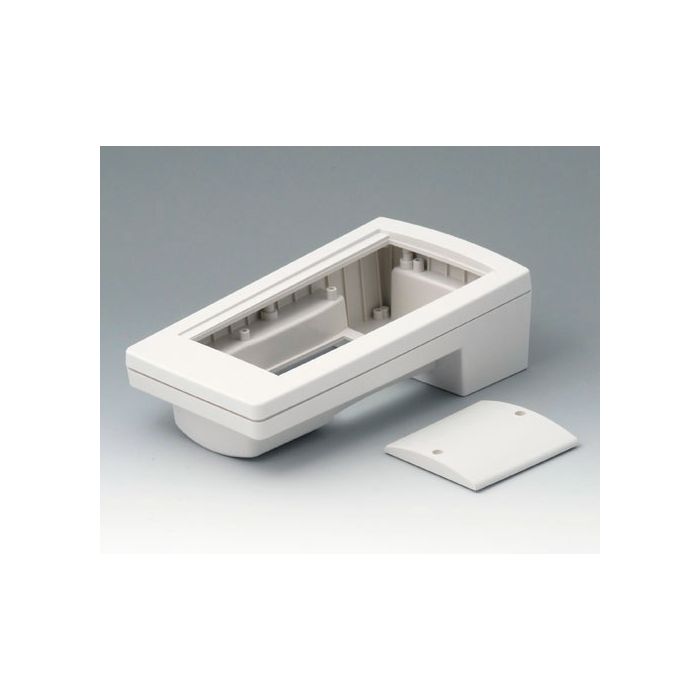

Robust hand-held enclosure with front panel assembly from rear, screw pillars for PCBs, battery compartment, frame cover, and assembly kit.
Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory. With frame cover for the use of an aluminium-front panel (accessories). Supply: Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9046207 |
|---|---|
| Manufacturer | OKW |
| Material | PC+ABS (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 120 mm |
| Length | 220 mm |
| Height | 65 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 206 mm |
| PCB Width, Base | 93 mm |
| PCB Length, Top | 206 mm |
| PCB Width, Top | 93 mm |
