OKW - Robust handheld enclosure with membrane keyboard area and battery compartment. [120 mm x 220 mm x 65 mm]
Lei 268.00
Lei 225.21
In stock
SKU
A9046107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

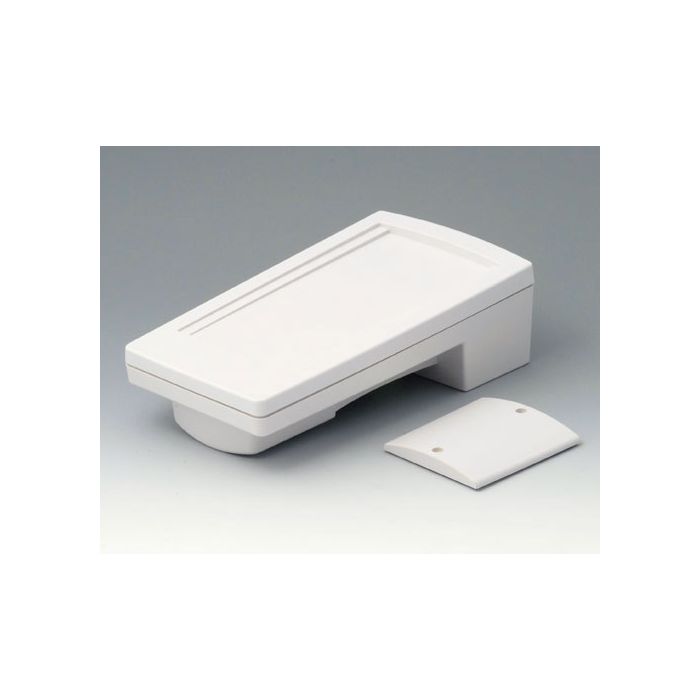

Robust handheld enclosure with membrane keyboard area and battery compartment.
Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9046107 |
|---|---|
| Manufacturer | OKW |
| Material | PC+ABS (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 120 mm |
| Length | 220 mm |
| Height | 65 mm |
| PCB Length, Base | 206 mm |
| PCB Width, Base | 93 mm |
| PCB Length, Top | 206 mm |
| PCB Width, Top | 93 mm |
| Keypad Length | 170 mm |
| Keypad Width | 70 mm |
