OKW - Handheld case for changeable battery compartments with large display area
Lei 220.00
Lei 184.87
Out of stock
SKU
A9078207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

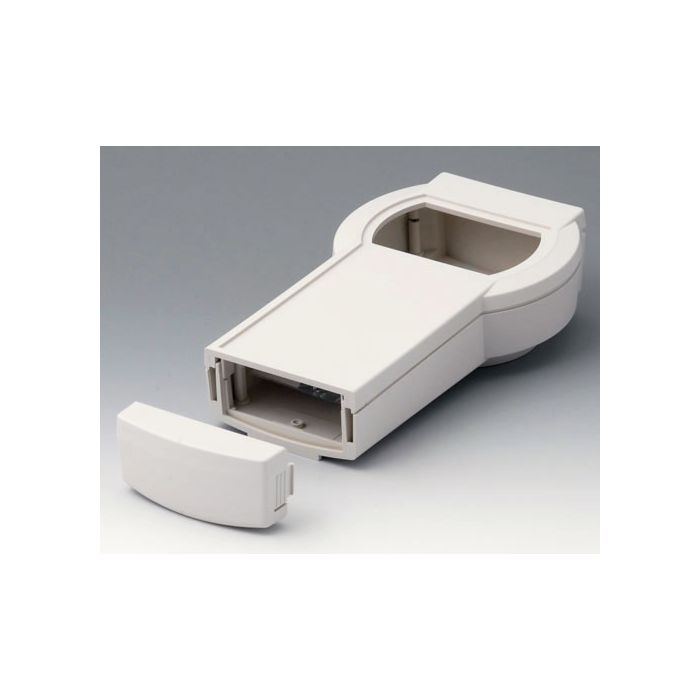

Handheld case for changeable battery compartments with large display area
Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment. With maximum sized cutout for digital displays. Supply: Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9078207 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 130 mm |
| Length | 243 mm |
| Height | 60 mm |
| Protection class | IP 54 opt. |
| PCB Length, Base | 207 mm |
| PCB Width, Base | 80 mm |
| PCB Length, Top | 113 mm |
| PCB Width, Top | 78 mm |
| Keypad Length | 189.2 mm |
| Keypad Width | 78 mm |
