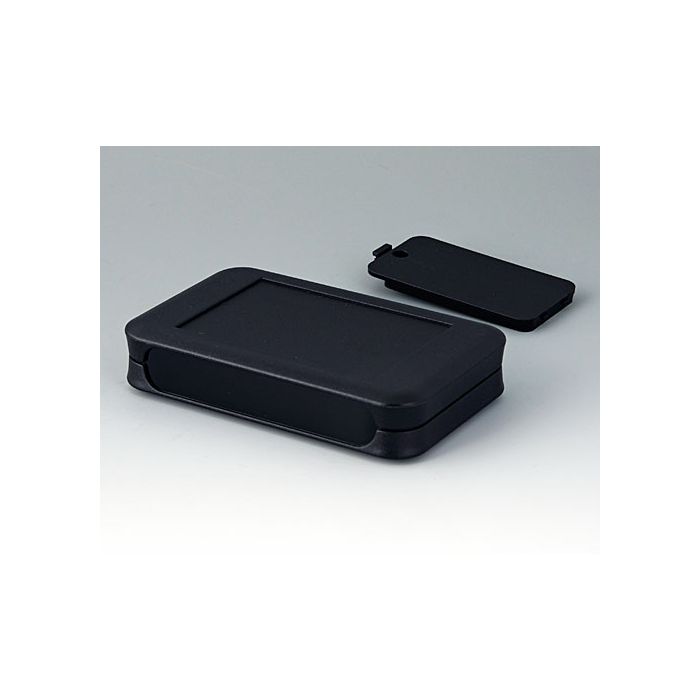

OKW - Pocket-format case with membrane keyboard area and battery compartment for 9V battery
Lei 90.00
Lei 75.63
In stock
SKU
A9052229
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Pocket-format case with membrane keyboard area and battery compartment for 9V battery
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible. Version: With battery compartment for 1 x 9 V (PP3), accessible from the outside. Supply: Top and bottom part, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PMMA (IR) (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 117 mm |
| Length | 73 mm |
| Height | 24 mm |
| Protection class | IP 40 |
| PCB Length, Base | 23 mm |
| PCB Width, Base | 108 mm |
| PCB Length, Top | 63 mm |
| PCB Width, Top | 108 mm |
| Keypad Length | 51.5 mm |
| Keypad Width | 77.5 mm |
