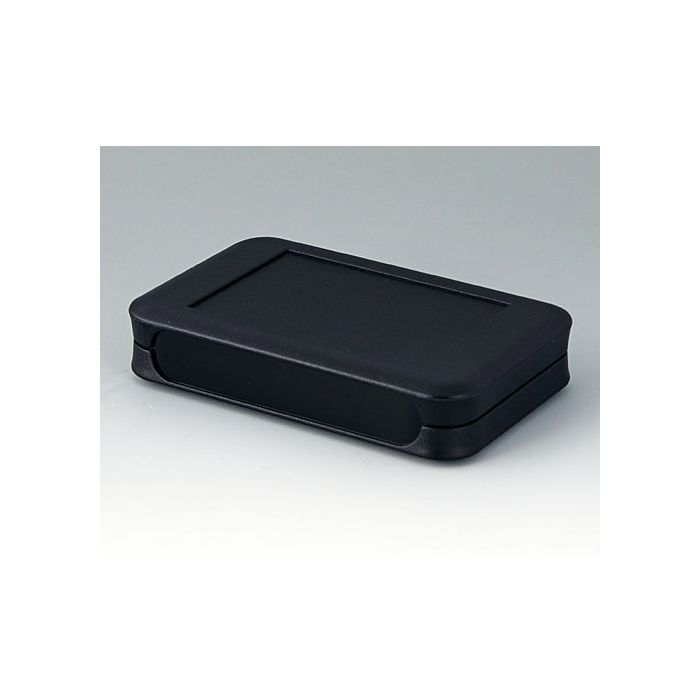

OKW - Unique pocket-format case with membrane keyboard recess. Fixing options for PCBs. Optional rings for more height. IP54 with TPE ring. IR function with/without intermediate ring. Without battery compartment.
Lei 76.00
Lei 63.87
In stock
SKU
A9052209
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Unique pocket-format case with membrane keyboard recess. Fixing options for PCBs. Optional rings for more height. IP54 with TPE ring. IR function with/without intermediate ring. Without battery compartment.
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible. Version Without battery compartment Supply Top and bottom part, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PMMA (IR) (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 117 mm |
| Length | 73 mm |
| Height | 24 mm |
| Protection class | IP 54 opt. |
| PCB Length, Base | 63 mm |
| PCB Width, Base | 108 mm |
| PCB Length, Top | 63 mm |
| PCB Width, Top | 108 mm |
| Keypad Length | 51.5 mm |
| Keypad Width | 77.5 mm |
