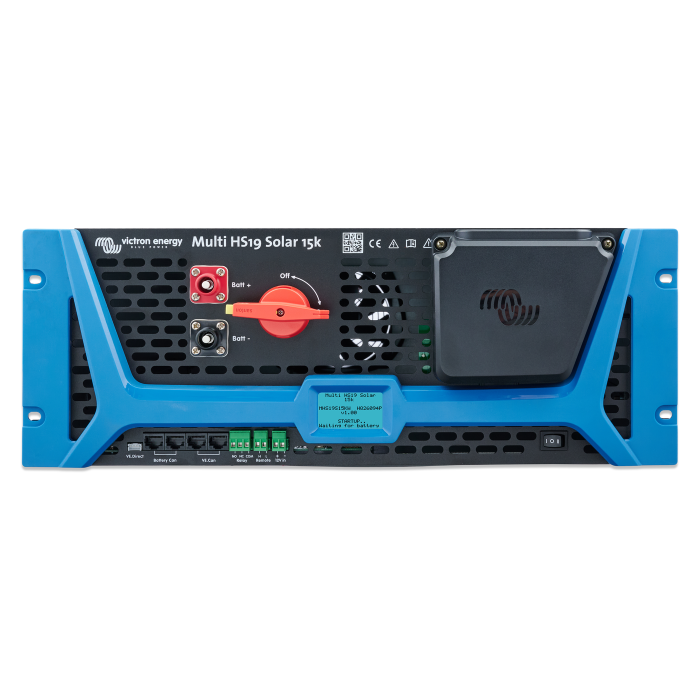

Built for 650-1000V systems, the Multi HS19 Solar 15k combines 3-phase power, battery charging, and solar tracking in a single 19-inch rack unit. High-voltage operation reduces current, cabling, and losses; enabling more compact systems, faster installation, and high efficiency within the Victron ecosystem.

• High-voltage power for 650-1000V installations (CAN-bus managed high-voltage batteries), charging up to 33kW at 800V;
• Fits a standard 19-inch rack, next to compatible high-voltage batteries; 26.5 kg, can be installed by one person;
• Four independent MPPT trackers, up to 32kW of PV input, maximum PV voltage 600V, 99% tracker efficiency;
• Full 3-phase power (400V) from one unit: 15kW continuous, 22kW peak (3 s);
• Inverter efficiency up to 98%, low standby consumption, quiet operation;
• Touch-safe Surlok DC connectors (IP2X), click-in MC4 solar connectors and push-in AC plugs;
• PowerControl and PowerAssist; remote on/off terminal and programmable relay;
• Bluetooth and VictronConnect app on site; dedicated VE.Can port for a GX device (VRM remote monitoring) and Battery CAN-bus port for compatible batteries.

Key data: DC input / charge voltage range 650 - 1000V (nominal 800V), max. DC charge current 41A; AC input 32A, 187 - 265V per phase, 45 - 65Hz; AC output 400V 3-phase, 22A continuous per phase; two AC outputs; IP20; 482.6 x 177.8 x 700 mm (4U); operating temperature up to 60 °C (fan assisted cooling); no parallel operation.

Documents & Downloads:

Datasheet Multi HS19 Solar 15k

Manual Multi HS19 Solar

Enclosure dimensions

Declaration of Conformity

ISO9001 certificate
