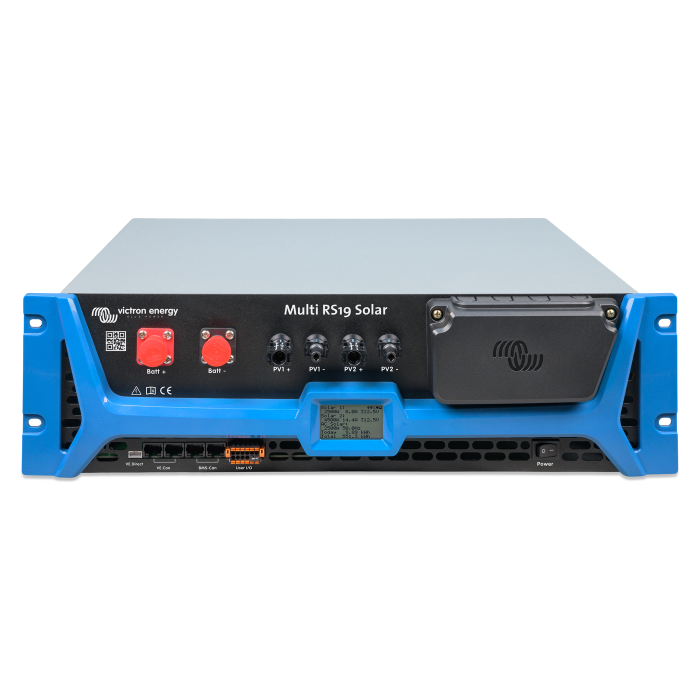

VICTRON ENERGY - PMR482602030 - Multi RS19 Solar 48/6000/100-450/100 – 6000VA / 48V / charger 100A / MPPT 450V (rack 19")
Lei 9,057.00
Lei 7,485.12
In stock
SKU
VICPMR482602030
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
This variant: 6000VA / 48V, 100A charger, 50A transfer switch, two MPPT 450V trackers (6000W PV), 19" rack-mount
Manufacturer code: PMR482602030
Multi RS19 Solar
The Multi RS19 Solar 48/6000 is the 19-inch rack version of the Multi RS Solar, made to fit into the standard 19″ battery rack for a more compact installation, and is suitable for both grid-connected and off-grid applications.
For grid-connected applications, it supports Dynamic ESS functionality while offering the flexibility to pair it with a different type or size of solar inverter, as excess PV capacity can be added via AC-coupled PV inverters whose output is automatically managed by the Multi RS's frequency shift power control. It can also be used as a direct grid connection without batteries, making it easy to start simple and add storage later.
For off-grid applications, the Multi RS offers a lightweight solution that keeps the batteries fully charged and supplies additional power when demand is high.
With the high-frequency technology, it delivers exceptional efficiency in a quiet, lightweight package with low standby power consumption.
All parameters can be monitored via the integrated display or the VictronConnect app, which also provides historical trends. It can be connected to a GX device, such as a Cerbo GX, for advanced ESS functions, like zero-export to block grid feed-in and backup mode to power critical loads during outages.
Key data: continuous output 6000VA (5300W at 52V and 25 °C, 4500W at 40 °C), peak 9000W (3 s) / 7000W (4 min); charger up to 100A (88A at 57.6V); transfer switch 50A; two independent MPPT trackers, PV operating range 65 - 450V, max. 6000W solar charging power, 12A operational PV current per tracker; solar earth-leakage protection (30mA); maximum efficiency 96.5%; zero-load power 20W; DC input 38 - 62V; AC input 187 - 265V, 45 - 65Hz; two AC outputs; PowerControl, PowerAssist, three-phase operation (no parallel operation); communication VE.Direct, VE.Can, Bluetooth; IP20, 12.2 kg, 483 x 133 x 430 mm (3U).
Documents & Downloads:
Certificate ESS EN 50549-1/-10
Write Your Own Review
| Manufacturer | VICTRON ENERGY |
|---|---|
| Manufacturer code | PMR482602030 |
| GTIN code | 8719076058403 |
| Order Unit | Pce |
| Output Voltage | 230V |
| Battery voltage | 48V |
| Maximum charge current | 100A |
| Colour | blue RAL 5012 / black RAL 9017 |
| Input voltage range (V AC) | 187 - 265V |
| Nominal power | 6000VA |
| Operating temperature | -40°C to +65°C |
| Humidity | Max. 95% |
| Data communication | VE.Direct, VE.Can, Bluetooth |
| Protection class | IP20 |
| Weight Kg | 12,2 Kg |
| Dimensions (h x w x d) | 133 x 483 x 430 mm |
