VICTRON ENERGY - PMP482506020 - MultiPlus-II 48/5000/70-50 – 5000VA / 48V / charger 70A (GX)
Lei 5,189.00
Lei 4,288.43
In stock
SKU
VICPMP482506020
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
This variant: 5000VA / 48V, 70A charger, 50A transfer switch, GX built-in
Manufacturer code: PMP482506020 (new revision of PMP482506000)

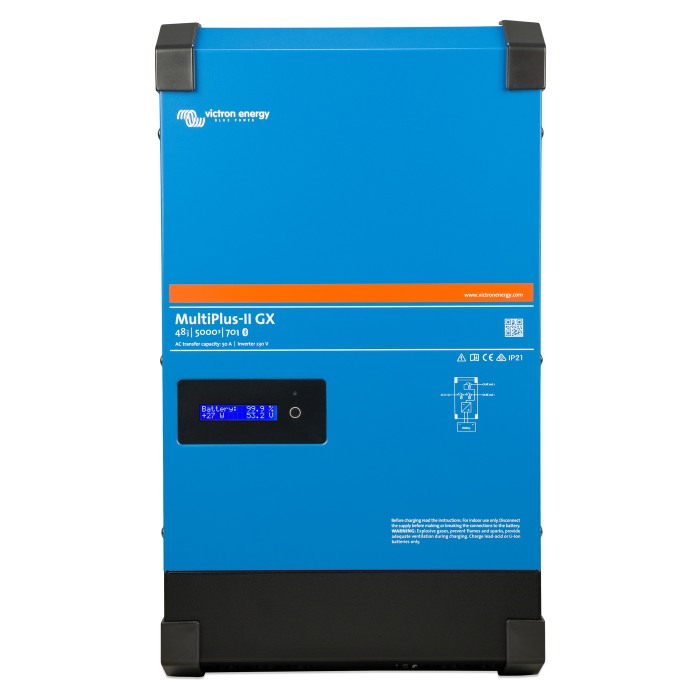

MultiPlus-II GX
inverter/charger with GX inside
An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.
Models: 3000VA, 4500VA, 5000VA, 6500VA
Key data of the 48/5000/70-50 GX: continuous output 5000VA (4000W at 25 °C), peak 9000W; charger 70A, adaptive 4-stage; transfer switch 50A; maximum efficiency 96%; zero-load power 18W (12W AES, 2W search mode); DC input 38 - 66V; AC input 187 - 265V, 45 - 65Hz; two AC outputs; PowerControl, PowerAssist, parallel and three-phase operation; communication VE.Bus, VE.Direct, VE.Can, BMS-Can, WiFi, Ethernet (GX); optional external AC current sensor 50A/100A; IP22, 31 kg.
Documents & Downloads:
Manual Energy Storage System (ESS)
Enclosure dimensions 48V 5000VA GX
Certificate Safety 48/3000 (GX) & 48/5000 (GX)
Write Your Own Review
| Manufacturer | VICTRON ENERGY |
|---|---|
| Manufacturer code | PMP482506020 |
| GTIN code | 8719076075219 |
| Order Unit | Pce |
| Output Voltage | 230V |
| Battery voltage | 48V |
| Maximum charge current | 70A |
| Colour | blue RAL 5012 |
| Input voltage range (V AC) | 187 - 265V |
| Nominal power | 5000VA |
| Operating temperature | -40°C to +65°C |
| Humidity | Max. 95% |
| Data communication | VE.Bus, VE.Direct, VE.Can, BMS-Can, WiFi, Ethernet |
| Protection class | IP22 |
| Weight Kg | 31 Kg |
| Dimensions (h x w x d) | 565 x 323 x 148 mm |
| Standards | Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 Uninterruptible power supply: IEC 62040-1 |
