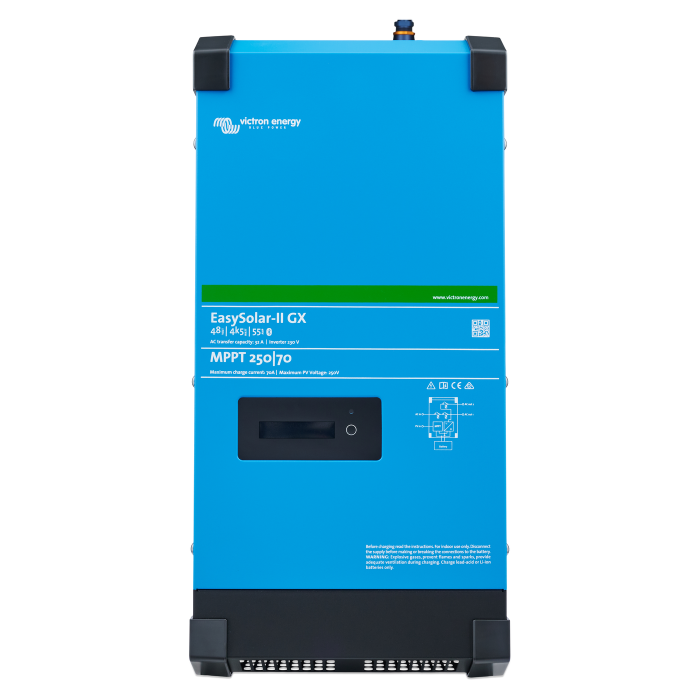

VICTRON ENERGY - PMP482457010 - EasySolar-II 48/4500/55-32 – 4500VA / 48V / charger 55A / MPPT 250/70 (GX)
Lei 6,515.00
Lei 5,384.30
In stock
SKU
VICPMP482457010
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
This variant: 4500VA / 48V, 55A charger, 32A transfer switch, MPPT 250/70 (up to 4000Wp PV), GX built-in
Manufacturer code: PMP482457010
EasySolar-II GX
All-in-one solar power solution
The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Models: 3000VA, 4500VA, 5000VA, 6500VA
Key data of the 48/4500/55-32 MPPT 250/70 GX: continuous output 4500VA (4000W at 25 °C, 3700W at 40 °C), peak 7000W; charger 55A, adaptive 4-stage, plus 50A for a starter battery; transfer switch 32A; solar charger SmartSolar MPPT 250/70-Tr (max. PV open circuit voltage 250V, max. PV power 4000W, 99% efficiency); inverter efficiency 95%; zero-load power 20W (12W AES, 7W search mode); DC input 38 - 60V; AC input 187 - 265V, 45 - 65Hz; two AC outputs; PowerControl, PowerAssist; communication VE.Direct, BMS-Can, WiFi, Ethernet (GX); IP21, 27 kg.
Documents & Downloads:
Datasheet EasySolar-II 48V 4k5 / 6k5 GX
Manual EasySolar-II GX 4k5 / 6k5
Write Your Own Review
| Manufacturer | VICTRON ENERGY |
|---|---|
| Manufacturer code | PMP482457010 |
| GTIN code | 8719076073970 |
| Order Unit | Pce |
| Output Voltage | 230V |
| Battery voltage | 48V |
| Maximum charge current | 55A |
| Colour | blue RAL 5012 |
| Input voltage range (V AC) | 187 - 265V |
| Nominal power | 4500VA |
| Operating temperature | -20°C to +65°C |
| Humidity | Max. 95% |
| Data communication | VE.Direct, BMS-Can, WiFi, Ethernet |
| Protection class | IP21 |
| Weight Kg | 27 Kg |
| Dimensions (h x w x d) | 591 x 275 x 254 mm |
| Standards | Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 Uninterruptible power supply: IEC 62040-1 |
