OKW - Triangular plastic enclosure, 45° angle, IP40, Torx screws
Lei 97.00
Lei 81.51
In stock
SKU
B4610107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

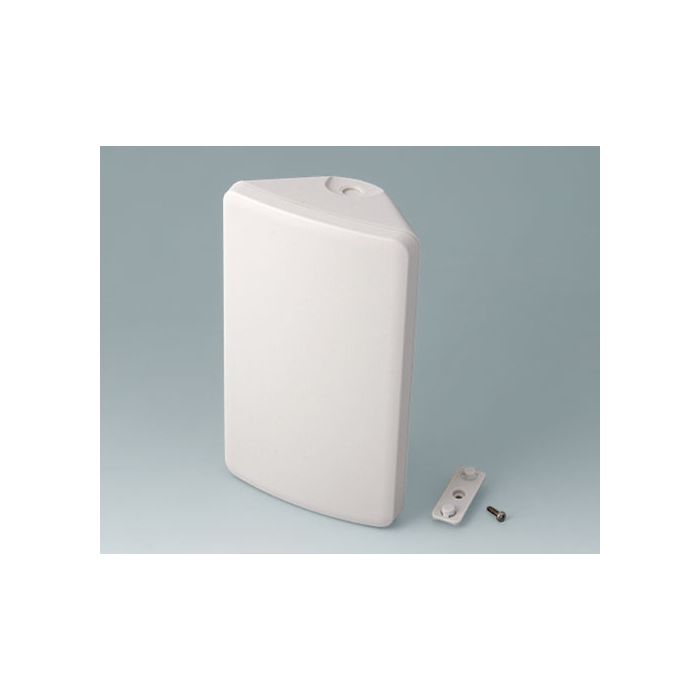

Triangular plastic enclosure, 45° angle, IP40, Torx screws
Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 101 mm |
| Length | 173 mm |
| Height | 59 mm |
| Protection class | IP 40 |
| PCB Length, Base | 152 mm |
| PCB Width, Base | 70 mm |
| PCB Length, Top | 158 mm |
| PCB Width, Top | 88 mm |
