OKW - Two-piece plastic enclosure with sealing, recessed panel, attachment domes, and stainless steel lock.
Lei 342.00
Lei 287.39
In stock
SKU
C7030114
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

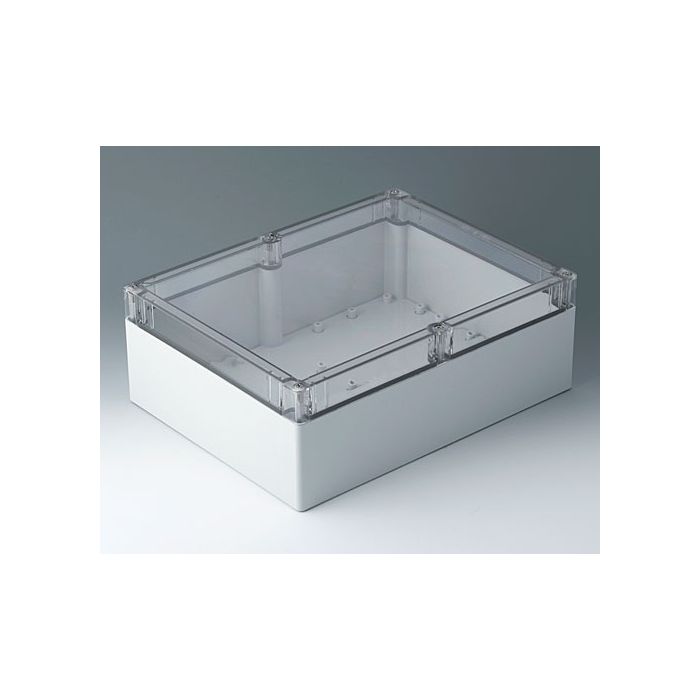

Two-piece plastic enclosure with sealing, recessed panel, attachment domes, and stainless steel lock.
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area. Supply: 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS/PC (UL 94 HB) |
| Colour | Bottom part light grey RAL 7035, Top part transparent |
| Standards | RoHS compliant, REACH compliant |
| Width | 232 mm |
| Length | 302 mm |
| Height | 110 mm |
| Protection class | IP 66, IP 67, IK 07 |
| PCB Length, Base | 270.5 mm |
| PCB Width, Base | 222.5 mm |
| Keypad Length | 274.9 mm |
| Keypad Width | 204.8 mm |
