OKW - Two-piece plastic enclosure with sealing, panel protection, attachment domes, stainless steel lock, assembly kit.
Lei 139.00
Lei 116.81
In stock
SKU
C7021071
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

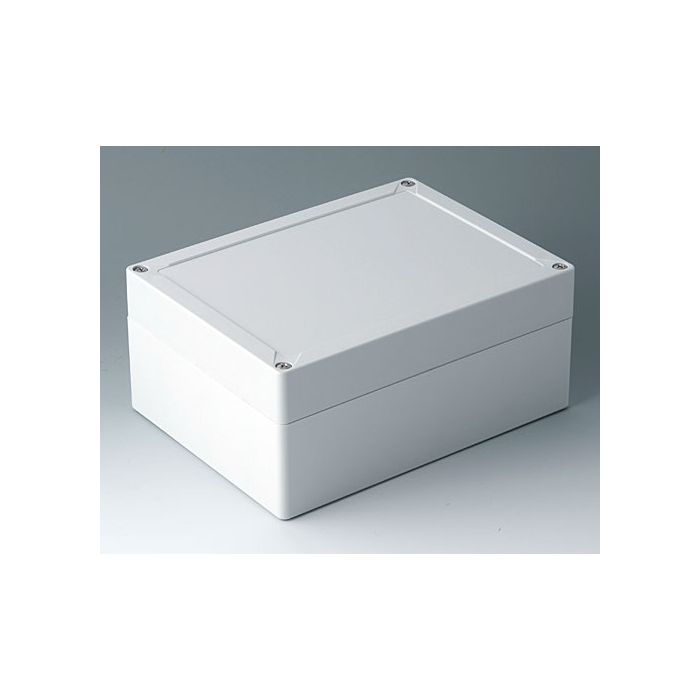

Two-piece plastic enclosure with sealing, panel protection, attachment domes, stainless steel lock, assembly kit.
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area. Supply: 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 152 mm |
| Length | 202 mm |
| Height | 90 mm |
| Protection class | IP 66, IP 67, IK 07 |
| PCB Length, Base | 171 mm |
| PCB Width, Base | 143 mm |
| Keypad Length | 174.65 mm |
| Keypad Width | 124.65 mm |
