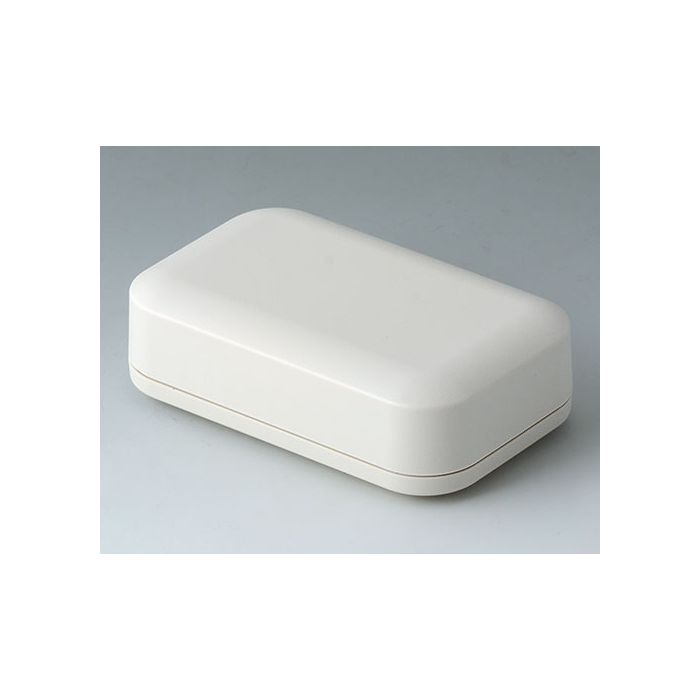

OKW - 2-part plastic enclosure, flat top, 31mm height, robust design with tongue and groove connection.
Lei 93.00
Lei 78.15
In stock
SKU
A9423107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
2-part plastic enclosure, flat top, 31mm height, robust design with tongue and groove connection.
2-part plastic enclosure with flat top part, height 31. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 62 mm |
| Length | 100 mm |
| Height | 31 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 90 mm |
| PCB Width, Base | 50 mm |
| PCB Length, Top | 90 mm |
| PCB Width, Top | 50 mm |
